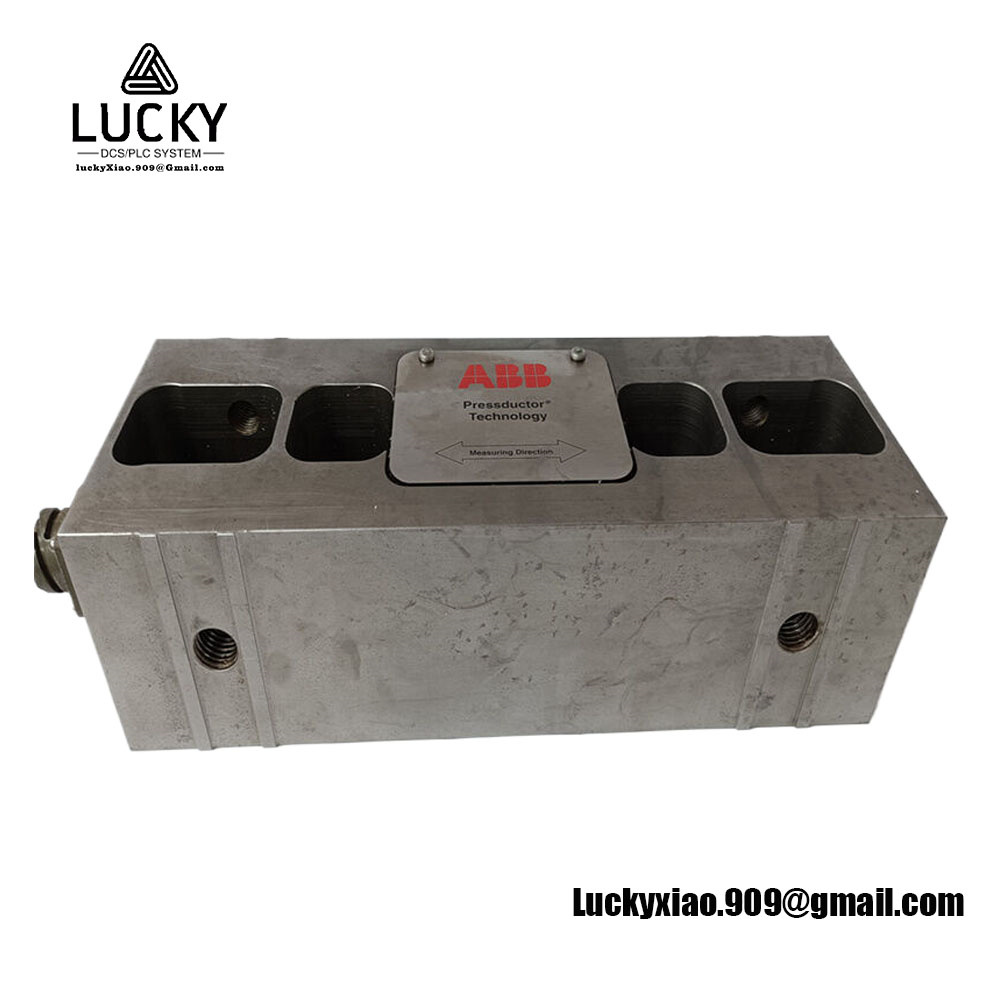

ABB PFTL101BE 2.0KN 3BSE004214R1 is a high-performance weighing or tension sensor designed specifically for industrial environments. The following is a detailed introduction of the sensor:
1、 Product Overview
manufacturer: ABB， A globally renowned provider of electrical equipment and automation solutions.
Model: PFTL101BE 2.0KN 3BSE004214R1 (also known as PFTL101BE 2.0KN).
Type: Load cell/tension sensor.
2、 Main features
Force measurement range: 2.0 kilonewtons (KN), suitable for various industrial application scenarios that require precise force measurement.
High precision: The sensor has high-precision measurement capability, and the measurement accuracy can reach a high level (the specific accuracy value may vary due to factors such as power supply mode, such as ± 0.5% or ± 0.25%, etc.), providing accurate measurement data to ensure the stability of the production line and product quality.
Strong protection level: The sensor has a good protection level, reaching IP68 standard, which means it can operate stably in harsh industrial environments and has good protection against dust and water intrusion.
Durable and sturdy: Made of high-strength materials, it has excellent durability and stability, and can withstand various stresses and vibrations in industrial environments for a long time.
Easy to integrate: Designed to be highly compatible with various industrial control systems, supporting fast integration and reducing installation and debugging time.
3、 Working principle
Based on the piezoelectric effect or other related principles, it can accurately convert mechanical force into electrical signal output. When a sensor is subjected to external force, its internal magnetic field or electrical properties will change, resulting in an electrical signal proportional to the external force.
4、 Multiple output signals
Provide multiple output options such as analog signals (such as 4-20mA or 0-10V) and digital signals (such as RS485 communication interface) for easy connection and data exchange with various control systems and monitoring devices.
5、 Application Fields
Rolling and stretching: Measuring and controlling the tension of materials during the rolling and stretching process to ensure uniformity and reduce the rate of defective products.
Printing and packaging: Measuring and controlling the tension of materials such as paper and film in the printing and packaging industry to ensure product quality and production efficiency.
Metal processing: Measuring and controlling the tension of metal materials in metal rolling and stretching processes to ensure material uniformity and reduce defect rates.
Other industrial fields: It can also be used in various fields such as wire and cable manufacturing, textile industry, environmental monitoring, etc., to meet various force measurement needs.
6、 Installation and maintenance
Installation: When installing sensors, ensure that the force direction of the sensor is consistent with the measurement direction, and use appropriate fixing devices to firmly install it on the equipment. At the same time, it should be ensured that the cable connection of the sensor is correct and secure.
Maintenance: During use, the sensor cable should be regularly checked for integrity to avoid damage or wear to the cable. At the same time, the working environment of the sensor should be kept clean and dry to avoid corrosion or contamination. If the sensor malfunctions or is abnormal, it should be promptly repaired or replaced by professional personnel.
