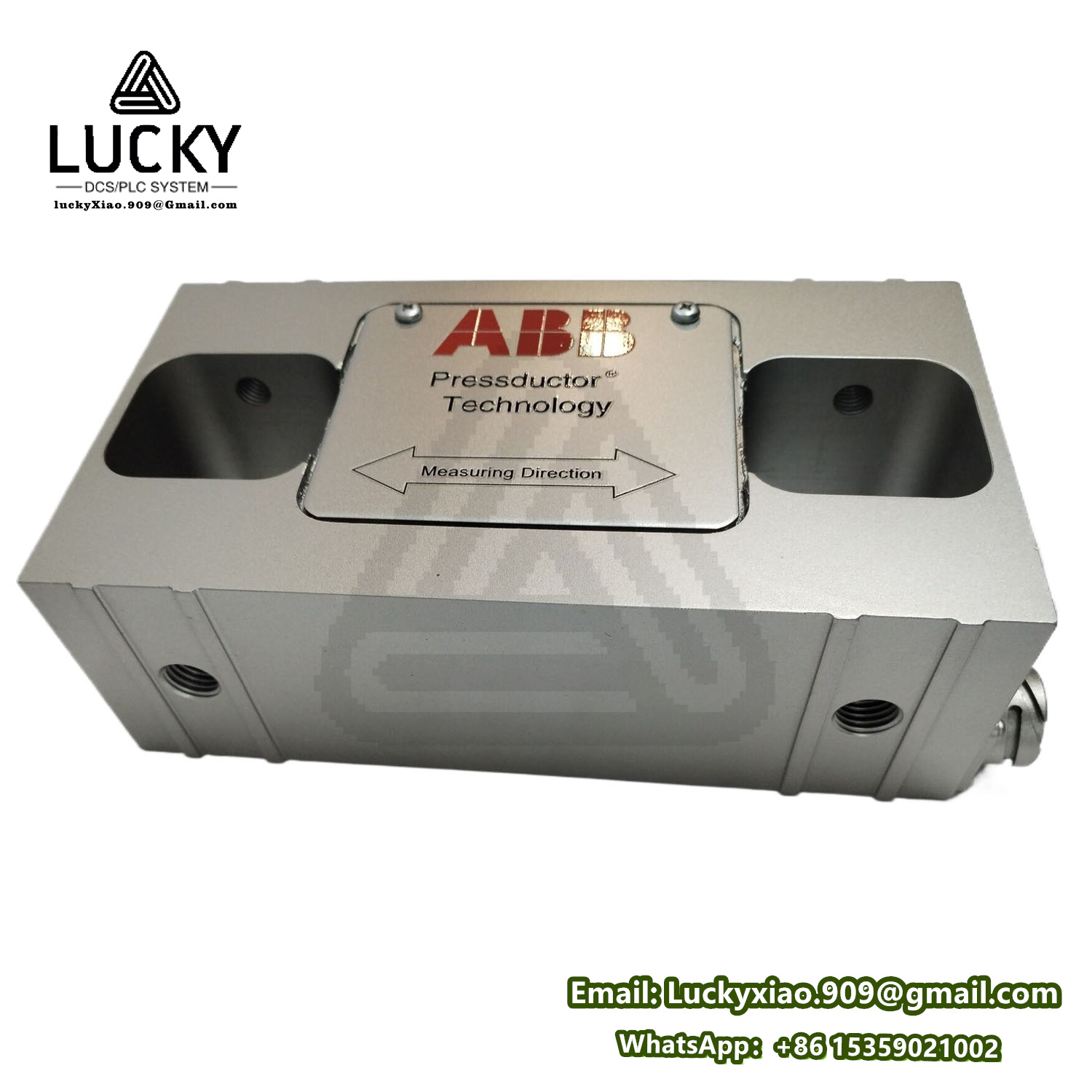

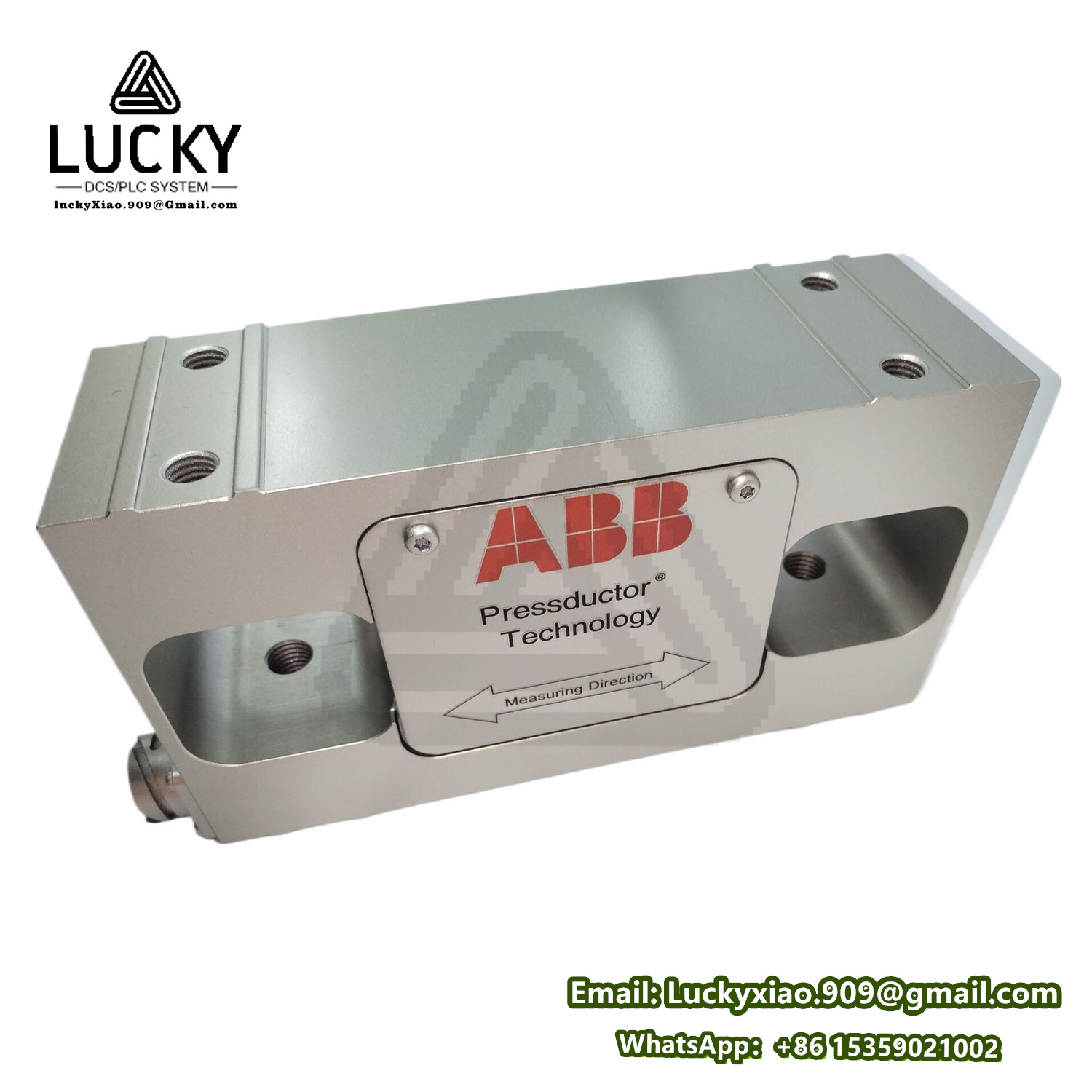

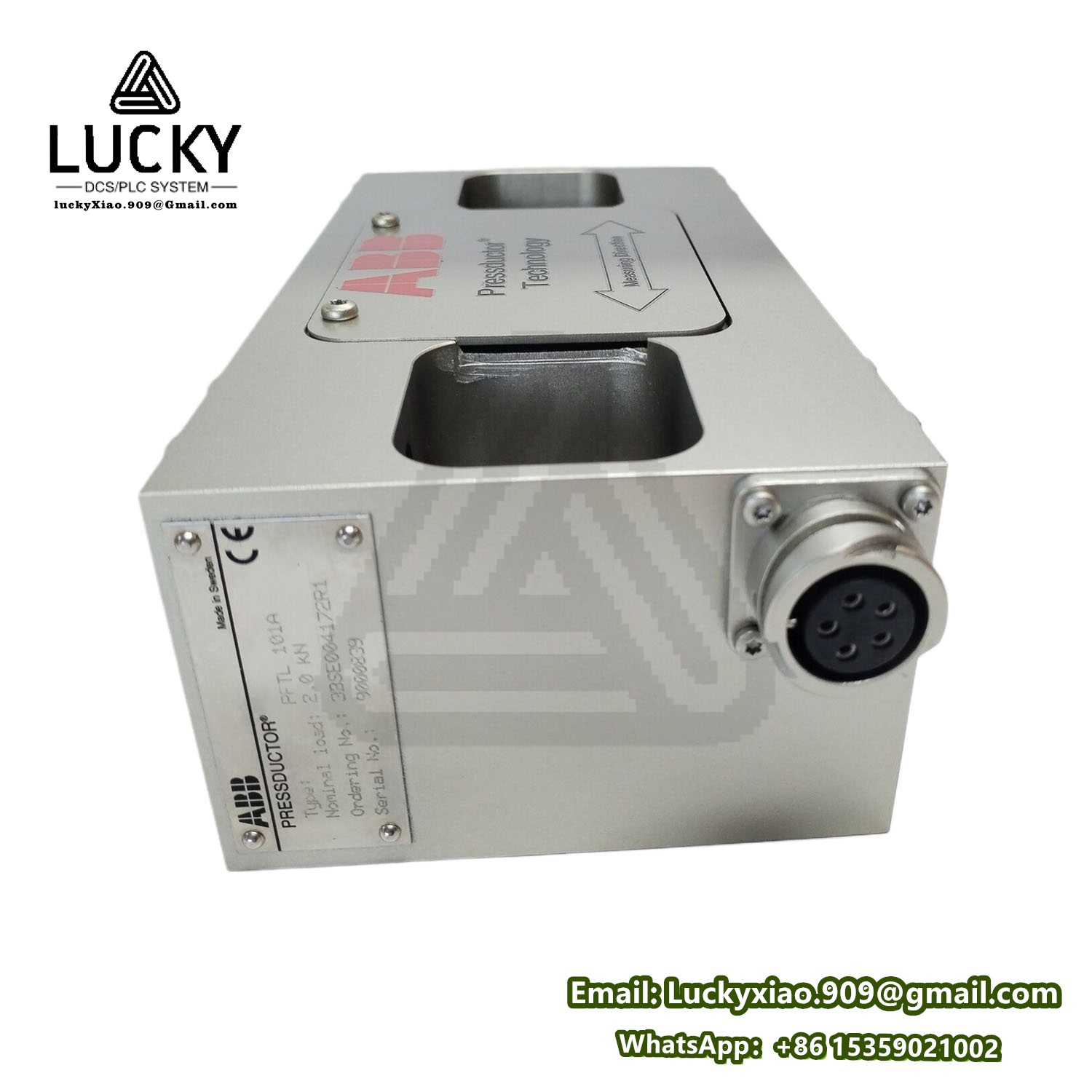

ABB PFTL101A 2.0KN 3BSE004172R1 Pressure Transmitter
The ABB PFTL101A 2.0KN 3BSE004172R1 is a high-precision pressure transmitter designed for industrial process measurement and control applications. Part of ABB’s 2600T Series, this device is widely used in industries such as oil and gas, chemical processing, power generation, and water treatment. It delivers accurate and reliable pressure measurement for liquids, gases, and steam in demanding environments. Below is a detailed breakdown of its features, technical specifications, and applications.
1. Key Features
- Measurement Range:
- 2.0 kN/m² (kPa): Optimized for low-pressure measurement (customizable ranges available).
- Configurable for gauge, absolute, or differential pressure measurement.
- High Accuracy:
- Typical accuracy of ±0.1% of span, ensuring precise monitoring for critical processes.
- Long-term stability with minimal drift due to temperature fluctuations.
- Robust Construction:
- Stainless Steel Housing: IP67/IP69K-rated for dust/water resistance and durability.
- Ceramic or Metal Diaphragm: Resistant to corrosion, abrasion, and aggressive media.
- Output and Communication:
- Analog Output: 4–20 mA HART, 2-wire configuration.
- Digital Protocols: Supports HART 7, Foundation Fieldbus, or Profibus PA (model-dependent).
- Environmental Adaptability:
- Operating Temperature: -40°C to +125°C (-40°F to +257°F).
- Process Temperature: Up to +150°C (+302°F) with optional cooling elements.
- Safety and Compliance:
- Certified for ATEX, IECEx, and SIL 2/3 for use in hazardous areas.
- Compliant with CE, RoHS, and REACH standards.
2. Technical Specifications
Parameter
|
Details
|
---|---|
Part Number
|
3BSE004172R1
|
Model
|
|
Pressure Type
|
Gauge/Absolute/Differential
|
Range
|
0–2.0 kN/m² (kPa) (customizable on request)
|
Output Signal
|
4–20 mA HART, 2-wire
|
Power Supply
|
10.5–45 VDC
|
Process Connection
|
G½, G¼, or flange-mounted (DIN 11851/EN 1092)
|
Electrical Connection
|
M12 plug, terminal block, or cable gland
|
Response Time
|
<10 ms
|
Media Compatibility
|
Water, oil, steam, aggressive chemicals (dependent on diaphragm material)
|
Certifications
|
ATEX, IECEx, SIL 2/3, CE, RoHS
|
3. Functional Capabilities
- Precision Measurement:
- Monitors pressure in real time for applications such as pipeline integrity, reactor control, and tank level management.
- Diagnostics and Maintenance:
- HART Communication: Remote configuration, calibration, and troubleshooting using HART-compatible tools (e.g., ABB FieldCare).
- Self-Diagnostics: Detects sensor faults, wiring issues, and signal interruptions.
- Integration:
- Seamlessly integrates with ABB’s System 800xA, Symphony Plus, and third-party DCS/PLC systems.
- Supports digital fieldbus networks for Industry 4.0-ready automation.
4. Applications
- Oil & Gas: Wellhead pressure monitoring, pipeline integrity management, separator vessel control.
- Chemical Plants: Reactor pressure regulation, distillation column safety, batch processing.
- Power Generation: Steam pressure measurement in boilers and turbines.
- Water/Wastewater: Pump station control, filtration system optimization, reservoir level monitoring.
5. Advantages
- High Reliability: Engineered for continuous operation in extreme conditions (vibration, shock, temperature).
- Easy Installation: Modular design with flexible mounting options (vertical/horizontal).
- Low Maintenance: Robust diaphragm materials reduce wear and calibration frequency.
- Global Compliance: Meets international safety and environmental standards.
6. Ordering and Accessories
- Replacement Part: Use part number 3BSE004172R1 for direct compatibility.
- Optional Accessories:
- Cooling Elements: For high-temperature applications.
- Flange Kits: ANSI/DIN-compliant process connections.
- Local Display: Optional LCD for on-site pressure readout.
7. Configuration and Calibration
- Setup Tools:
- ABB FieldCare: Software for parameter adjustment, calibration, and diagnostics.
- HART Communicator: Handheld device for field configuration.
- Calibration:
- Traceable calibration using certified pressure standards.
8. Summary
The ABB PFTL101A 2.0KN 3BSE004172R1 is a versatile and robust pressure transmitter, offering precision measurement, durability, and seamless integration into industrial automation systems. Its rugged design and advanced diagnostics make it ideal for critical applications in hazardous and demanding environments.
