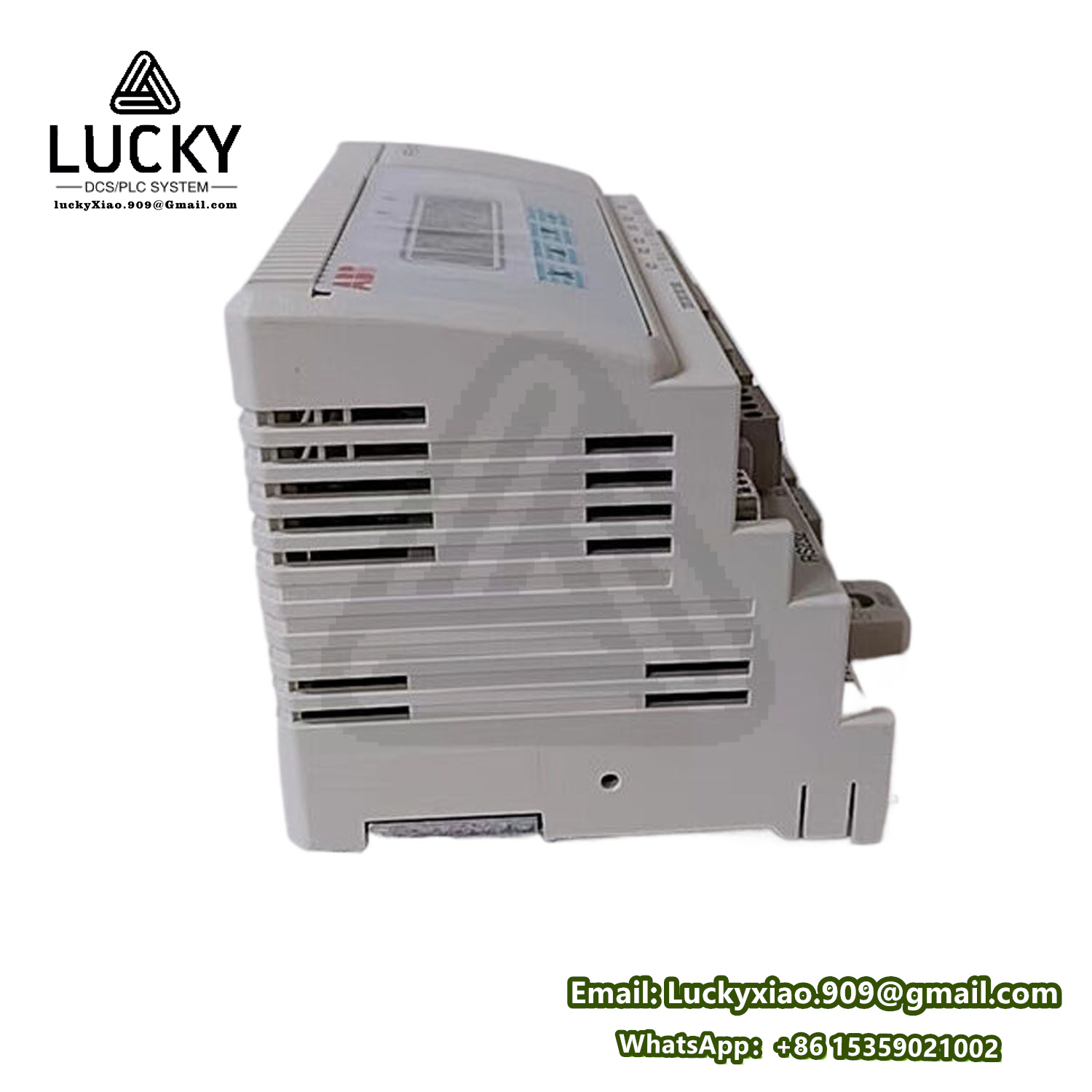

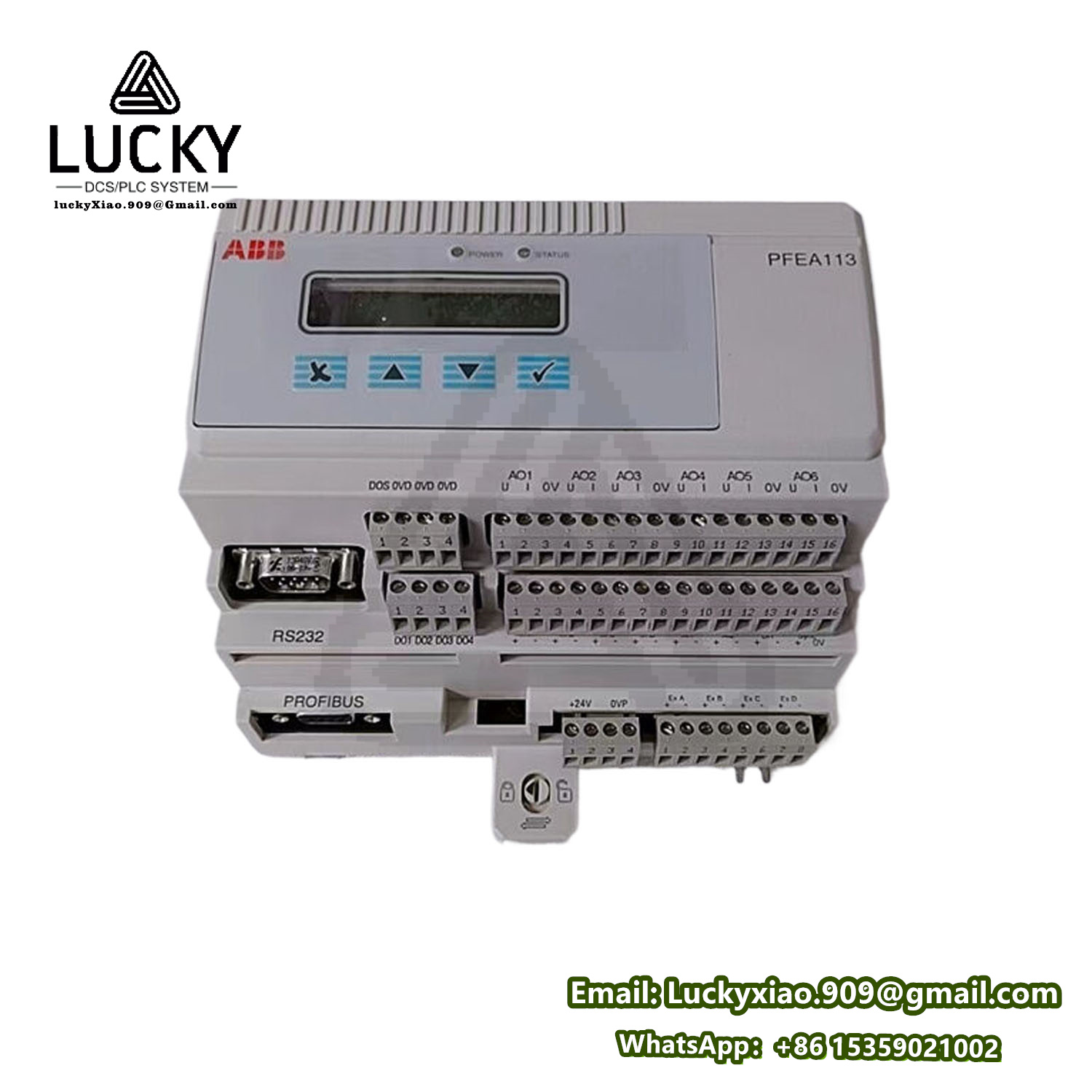

ABB PFEA113-20 3BSE050092R20 – Fieldbus Communication Module
The ABB PFEA113-20 3BSE050092R20 is a fieldbus communication module designed for ABB’s Freelance and AC 800M control systems. It facilitates seamless integration of field devices (sensors, actuators, drives) into industrial automation networks, supporting real-time data exchange and system scalability in applications like process control, manufacturing, and energy management.
Technical Parameters
|
Category
|
Specification
|
|---|---|
|
Module Type
|
Fieldbus communication interface (FOUNDATION Fieldbus H1)
|
|
Power Supply
|
24 V DC (±10%), powered via system backplane or external terminal
|
|
Communication Protocol
|
FOUNDATION Fieldbus H1 (IEC 61158-2)
|
|
Data Transfer Rate
|
31.25 kbps
|
|
Number of Channels
|
1 channel (supports up to 16 field devices per segment)
|
|
Isolation
|
500 V AC galvanic isolation between fieldbus and system
|
|
Operating Temperature
|
-20°C to +70°C
|
|
Humidity
|
5–95% (non-condensing)
|
|
Certifications
|
CE, UL, ATEX (optional), RoHS
|
|
Redundancy
|
Supports redundant fieldbus segments
|
|
Compatibility
|
ABB Freelance/AC 800M controllers, 800xA automation systems
|
Functional Features
- Fieldbus Integration
- Enables FOUNDATION Fieldbus H1 communication for real-time control and monitoring of field devices.
- Supports LAS (Link Active Scheduler) functionality for deterministic data exchange.
- Diagnostics & Health Monitoring
- Built-in diagnostics for segment faults, cable breaks, and device failures.
- LED indicators for power, communication status, and error alerts.
- Scalability & Flexibility
- Modular design allows expansion with additional fieldbus segments.
- Hot-swappable for maintenance without interrupting system operation.
- Industrial Resilience
- Robust design for harsh environments (high EMI, vibration, temperature extremes).
- Conformal coating option for protection against dust and moisture.
- Configuration & Management
- Configurable via ABB’s Control Builder M or Fieldbus Configurator tools.
- Automatic device recognition and parameterization using DD (Device Description) files.
- Redundancy Support
- Optional redundant fieldbus segments for mission-critical applications.
Typical Applications
- Process Industries: Integration of flow meters, pressure transmitters, and valves in refineries.
- Power Plants: Monitoring turbines, boilers, and safety systems.
- Manufacturing: Connecting PLCs, drives, and sensors in assembly lines.
- Water Treatment: Level and pH sensor networks in SCADA systems.
Compliance & Standards
- Safety: ATEX/IECEx (optional for hazardous areas), SIL 2/3 (IEC 61508).
- Communication: FOUNDATION Fieldbus H1 (IEC 61158-2).
- Environmental: RoHS, IP20 enclosure rating.
Conclusion
The ABB PFEA113-20 3BSE050092R20 is a critical component for FOUNDATION Fieldbus H1 integration within ABB’s automation ecosystems. Its robust design, diagnostic capabilities, and compatibility with Freelance/AC 800M systems make it ideal for industries requiring reliable field-level communication and scalable process control. Designed for demanding environments, it ensures seamless data exchange and operational continuity in complex industrial networks.
