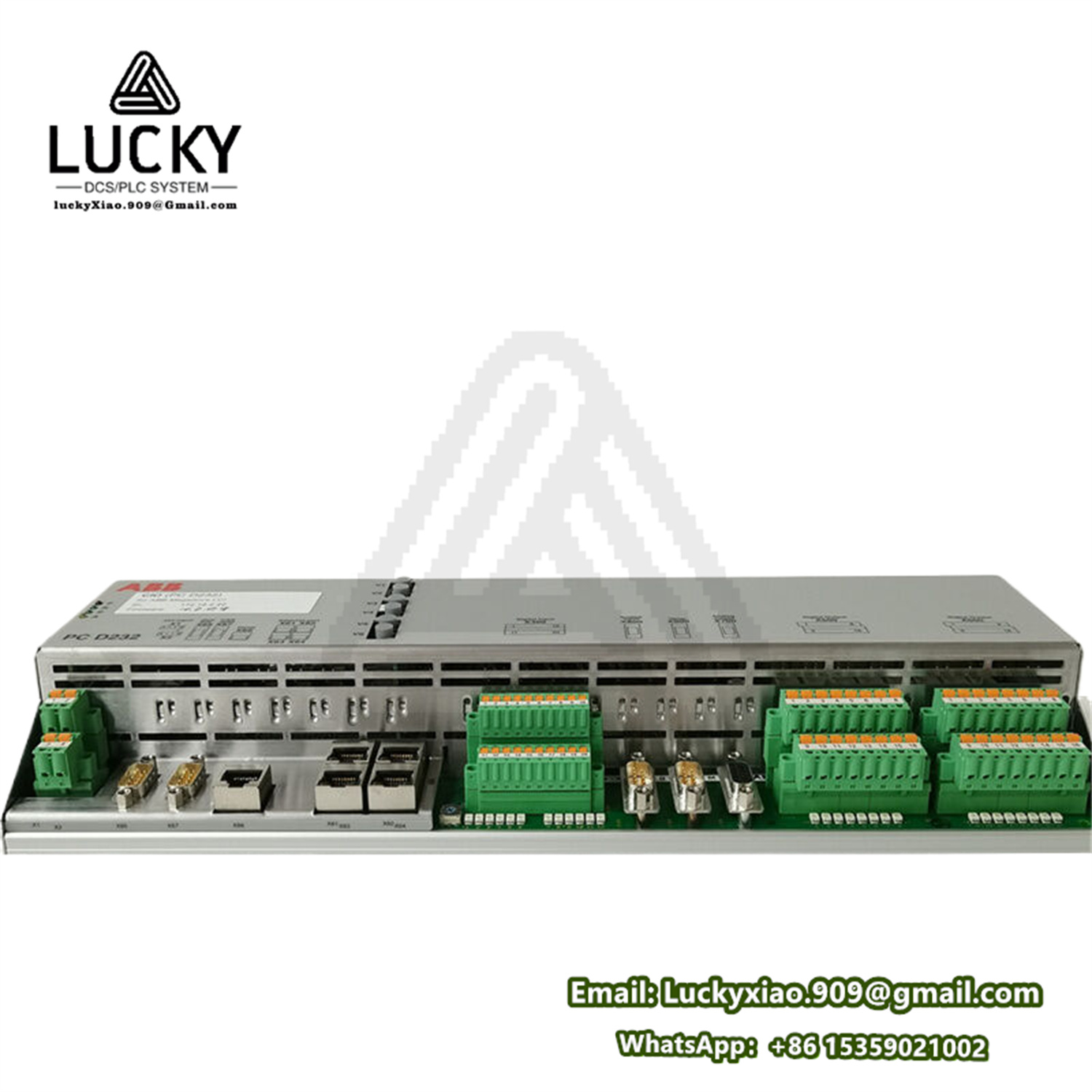

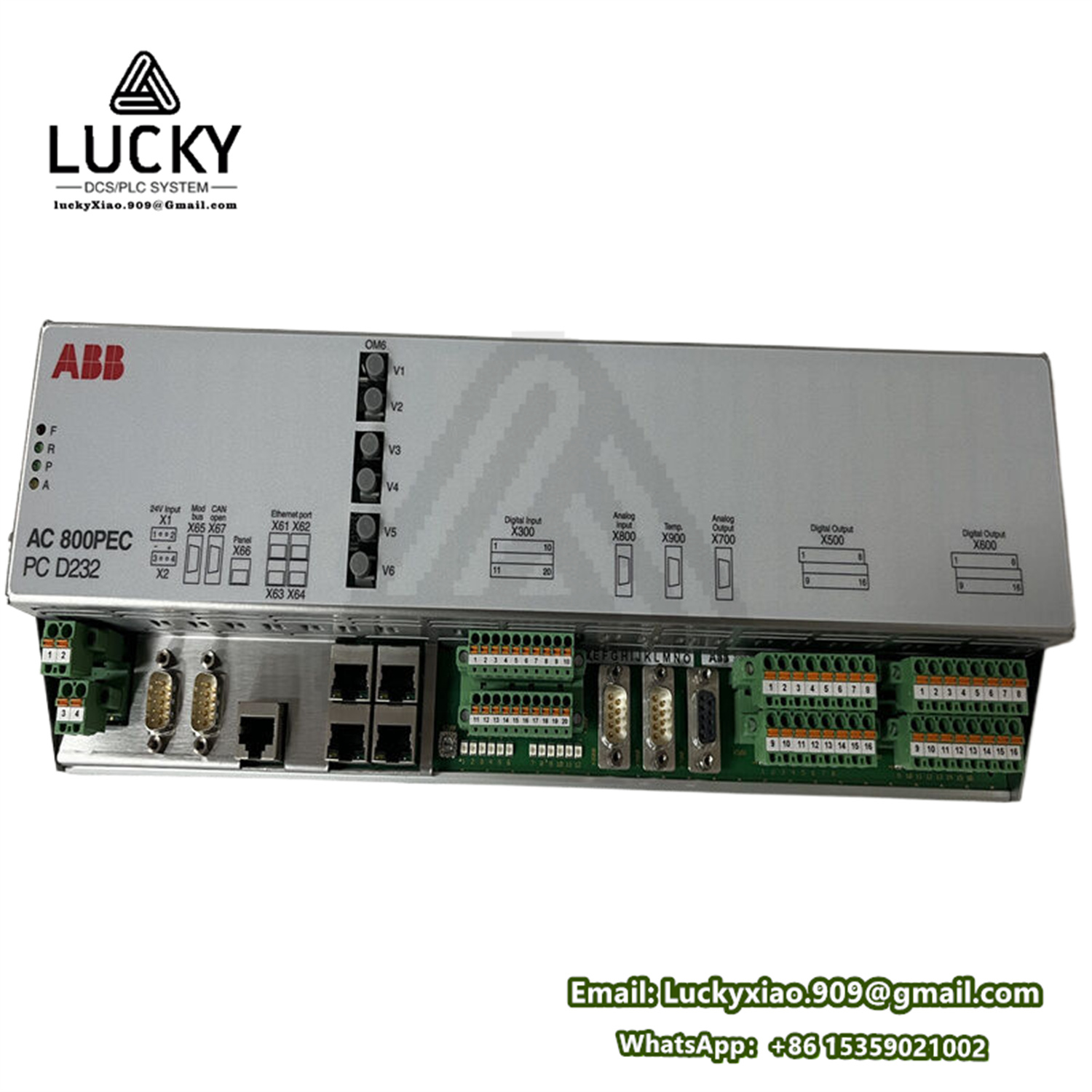

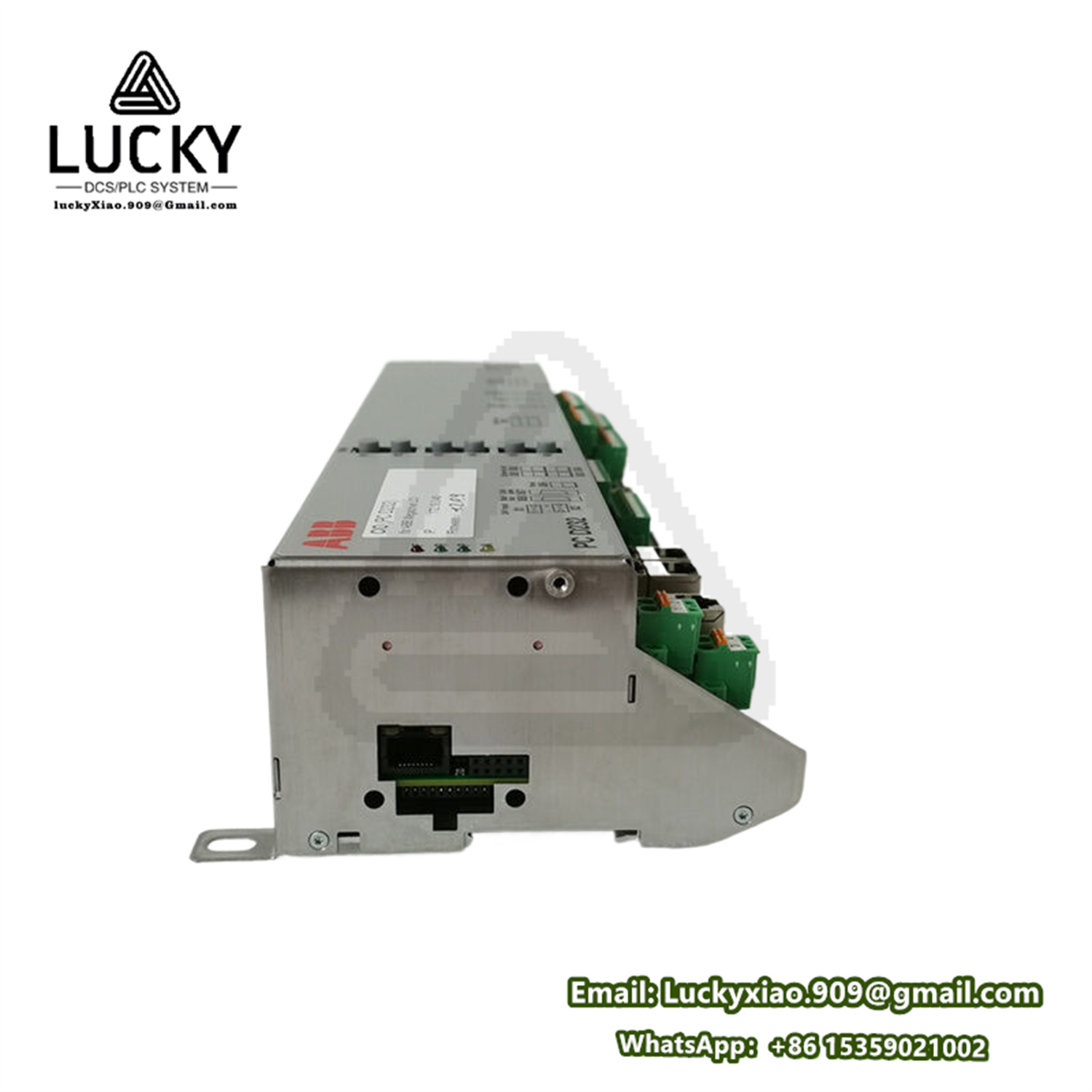

ABB PCD232A 3BHE022293R0101
━━━━━━━━━━━━━━━━━━━━━━━━
🛡️ Next-Gen Protection & Control | Relion® Series Excellence
🔍 Core Identity
Device Type: Multifunctional Protection Relay (Relion® 600 Platform)
Mission: Safeguard power systems with adaptive intelligence for grids, motors, and transformers.
📊 Technical Blueprint
|
Attribute
|
Specifications
|
|---|---|
|
Rated Voltage
|
24–250 VDC / 100–240 VAC (50/60 Hz)
|
|
Protection Functions
|
Overcurrent, Earth Fault, Motor Stall, Frequency Protection
|
|
Communication
|
IEC 61850, Modbus RTU/TCP, Ethernet, RS-485
|
|
Operating Temp
|
-40°C to +85°C (Extreme Environment Ready)
|
|
Certifications
|
IEC 60255, CE, UL, ATEX, and IECEx Compliant
|
|
Display
|
5.7″ Graphical LCD with Touch Navigation
|
|
Mechanical Robustness
|
Vibration-resistant (IEC 60068-2-6), IP54 Optional
|
🚀 Key Features
🔧 Adaptive Protection Logic
- Customizable curves for motor thermal overload and directional earth fault detection.
- Harmonics Analysis (up to 25th order) for power quality monitoring.
📡 Smart Grid Integration
- IEC 61850 Ed.2 Support: Seamless digital substation integration.
- Cybersecurity: Role-based access control and encrypted communication.
📊 Advanced Diagnostics
- Event Recorder: Stores 1,000+ time-stamped events with waveform capture.
- Load Profiling: Tracks energy consumption trends for efficiency audits.
🛠️ User-Centric Design
- One-Click Auto-Setting: Learns motor parameters for plug-and-play setup.
- Hot-Swappable Modules: Expand I/O or comms without downtime.
🌍 Application Scenarios
|
Sector
|
Use Cases
|
|---|---|
|
Power Generation
|
Generator protection, grid synchronization.
|
|
Oil & Gas
|
Pump/motor protection in explosive atmospheres.
|
|
Manufacturing
|
CNC machinery, conveyor belt motor safety.
|
|
Renewables
|
Solar inverter control, wind turbine protection.
|
|
Mining
|
Crusher motor monitoring in dusty environments.
|
🌟 Why PCD232A?
- Future-Ready: Bridges legacy systems and IIoT-enabled grids.
- Durability: Survives extreme heat, humidity, and mechanical stress.
- Sustainability: Reduces downtime and energy waste via predictive analytics.
🚚 Procurement Assurance
🔹 In Stock Now: Immediate dispatch from EU/US/Asia hubs.
🔹 Rapid Delivery: Guaranteed 2–5 business days via DHL/FedEx.
🔹 Warranty: 1-year full coverage + lifetime technical support.
━━━━━━━━━━━━━━━━━━━━━━━━
Power your systems with PCD232A – where reliability meets innovation.
Contact us for bulk discounts or custom configurations!📞 +8615359021002
