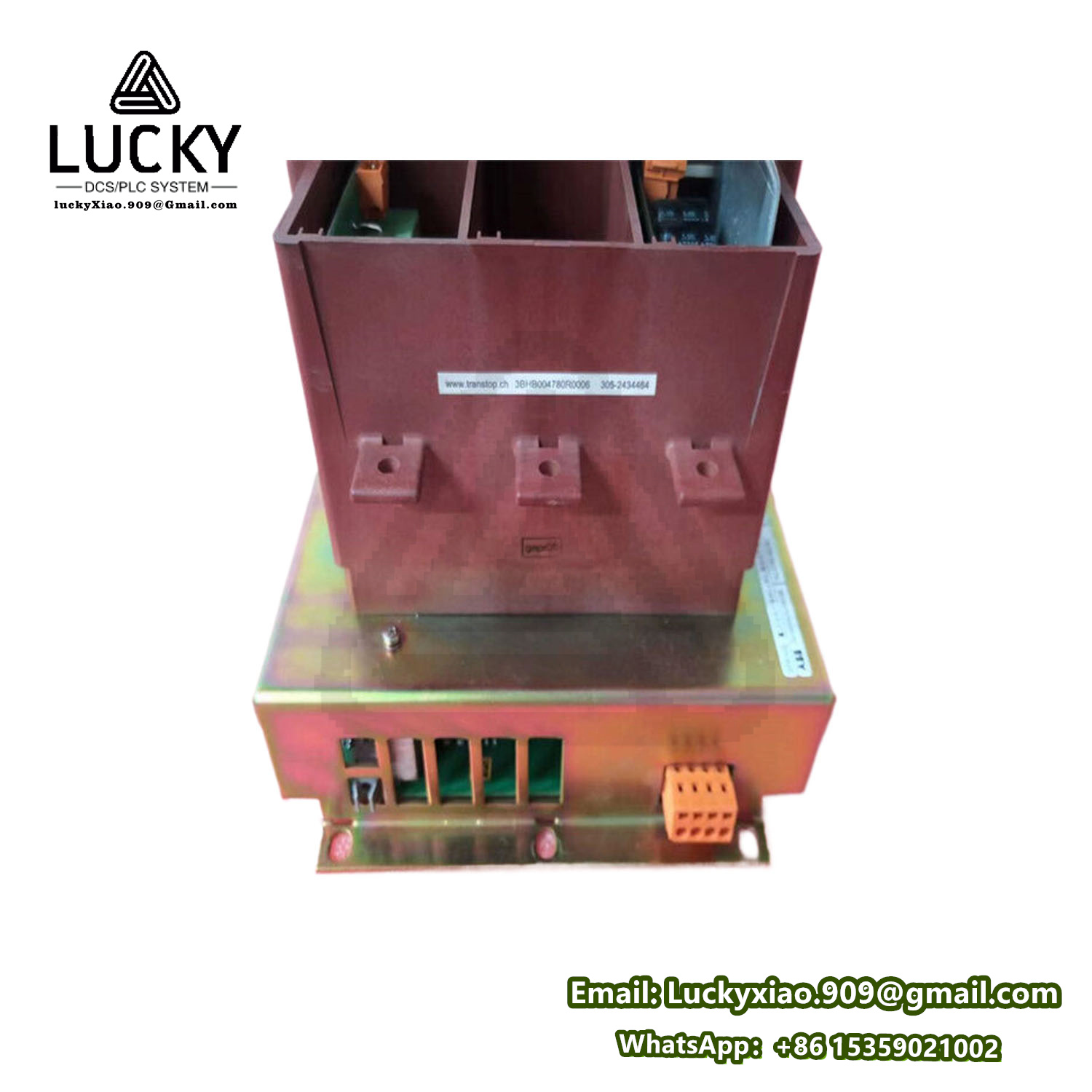

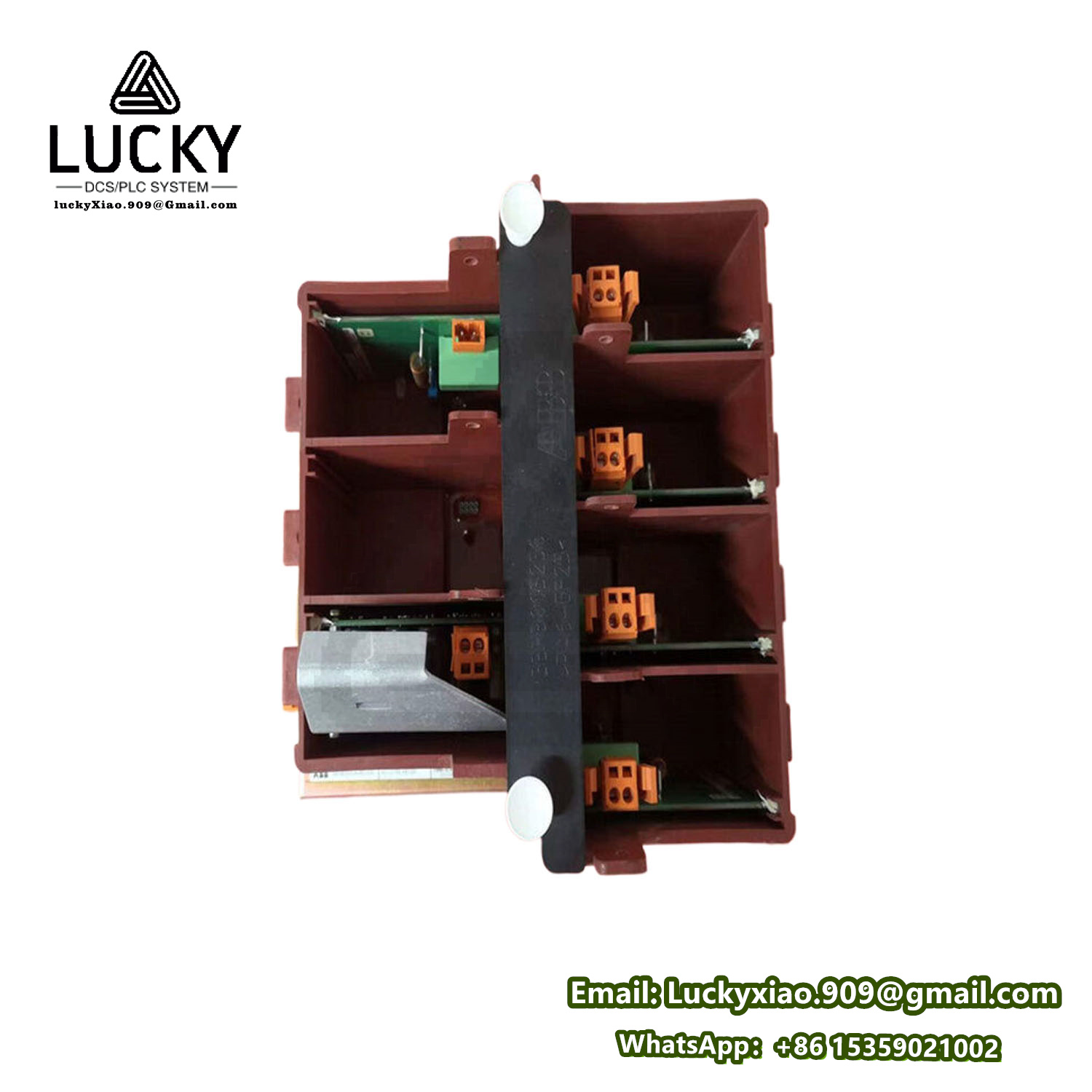

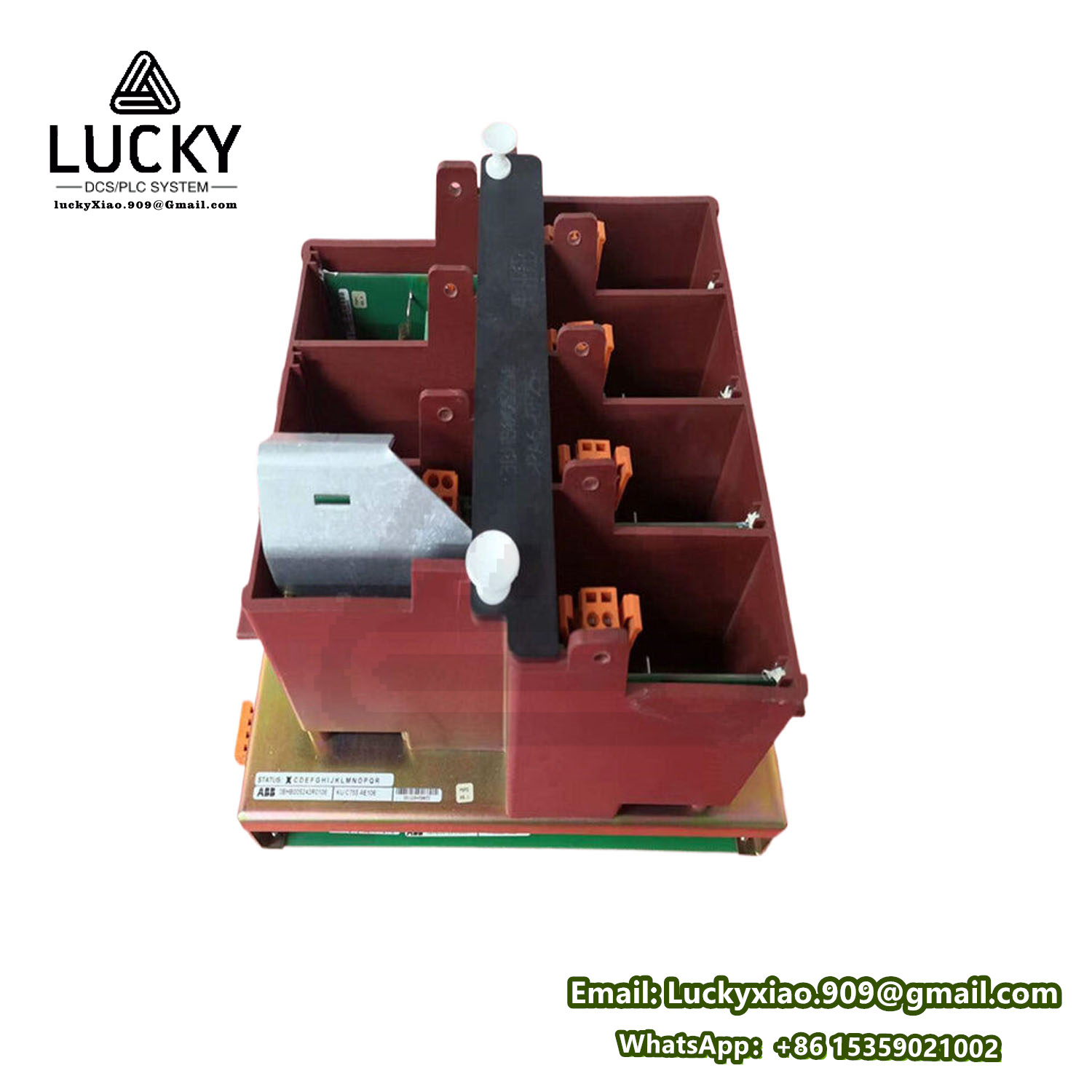

ABB KUC755AE106 3BHB005243R0106 Drive Control Module
The ABB KUC755AE106 3BHB005243R0106 is a drive control module designed for industrial automation and motor control applications. Part of ABB’s AC 800M and Drive Systems portfolio, this module is used to regulate and manage the operation of motors in demanding environments such as oil and gas, power generation, mining, and water treatment. Below is a detailed breakdown of its features, technical specifications, and applications.
1. Key Features
- Motor Control:
- Provides precise speed and torque control for AC/DC motors via variable frequency drive (VFD) functionality.
- Supports sensorless vector control and closed-loop control for high-performance applications.
- Communication and Integration:
- Fieldbus Protocols: Profibus DP, Modbus TCP/RTU, and Ethernet/IP for integration with PLCs, SCADA, and DCS.
- OPC UA/DA support for IT/OT convergence and cloud connectivity.
- Redundancy and Reliability:
- Hot-swappable design for minimal downtime during maintenance.
- Dual-channel redundancy for critical motor control applications.
- Safety and Protection:
- Built-in overcurrent, overtemperature, short-circuit, and earth fault protection.
- Compliant with SIL 2/3 standards for safety-critical processes.
- Robust Design:
- Operating Temperature: -25°C to +70°C (-13°F to +158°F).
- IP20-rated enclosure for protection against dust and limited moisture.
2. Technical Specifications
Parameter
|
Details
|
---|---|
Part Number
|
3BHB005243R0106
|
Module Type
|
Drive Control Unit (Motor Controller)
|
Input Voltage
|
24 VDC (±10%) or 100–240 VAC (depending on configuration)
|
Output Power
|
Up to 500 kW (dependent on motor and system configuration)
|
Communication Protocols
|
Profibus DP, Modbus RTU/TCP, Ethernet/IP, OPC UA/DA
|
Control Modes
|
Sensorless vector, closed-loop, V/f control
|
Certifications
|
CE, UL, ATEX (for hazardous areas), IEC 61800-5-1 (safety standards)
|
Dimensions
|
Standard modular size (compatible with ABB drive cabinets)
|
3. Functional Capabilities
- Motor Performance Optimization:
- Adjusts motor speed and torque dynamically to match process requirements, reducing energy consumption.
- Process Integration:
- Seamless integration with ABB’s Industrial IT 800xA and AC 800M control systems for centralized automation.
- Diagnostics and Maintenance:
- Real-time monitoring of motor parameters (current, voltage, temperature, vibration).
- Predictive maintenance alerts via ABB Ability™ analytics platform.
- Safety Functions:
- Safe Torque Off (STO) and Safe Stop functionalities for SIL 2/3 compliance.
4. Applications
- Oil & Gas: Control of pumps, compressors, and fans in offshore platforms and refineries.
- Power Generation: Regulation of cooling tower fans, boiler feed pumps, and turbine auxiliaries.
- Mining: Conveyor belt drives, crushers, and ventilation systems.
- Water Treatment: Pump control in wastewater plants and desalination facilities.
- Manufacturing: Precision control of production line motors and robotics.
5. Integration with ABB Systems
- AC 800M Controllers: Direct compatibility for centralized process control.
- ACS800/ACS880 Drives: Works with ABB’s drive systems for scalable motor control solutions.
- 800xA DCS: Enables unified monitoring and control across plant operations.
6. Advantages
- Energy Efficiency: Optimizes motor performance to reduce power consumption.
- Scalability: Modular design supports expansion for multi-motor systems.
- Cybersecurity: Secure communication protocols (e.g., OPC UA with TLS) protect against cyber threats.
- Global Compliance: Meets international standards for safety and environmental regulations.
7. Software and Configuration Tools
- Drive Composer: ABB’s software for parameter configuration, commissioning, and diagnostics.
- Control Builder M: Integration with ABB’s automation engineering suite for logic programming.
- ABB Ability™: Cloud-based analytics for predictive maintenance and performance optimization.
8. Ordering and Compatibility
- Replacement Part: Use part number 3BHB005243R0106 for direct compatibility.
- Compatible Systems:
- ABB AC 800M, ACS800/ACS880 drives, and third-party PLCs via Modbus/Profibus.
9. Summary
The ABB KUC755AE106 3BHB005243R0106 is a versatile and robust drive control module, combining precise motor control, advanced diagnostics, and seamless integration into industrial automation systems. Its redundancy features and safety certifications make it ideal for critical applications in harsh environments.
