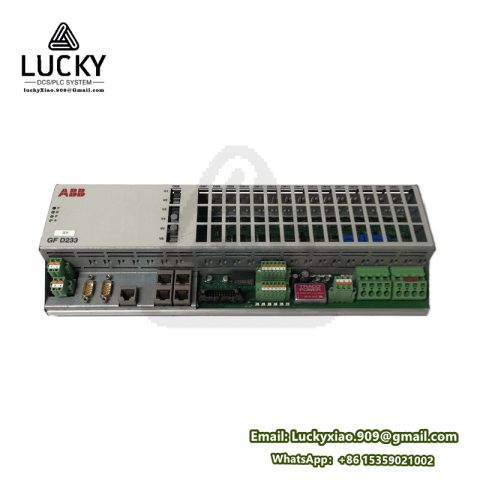

ABB GFD233A103 3BHE022294R0103 Communication Interface Module

ABB GFD233A103 3BHE022294R0103 Communication Interface Module

The ABB GFD233A103 3BHE022294R0103 is a communication interface module designed for industrial automation and process control systems. It is part of ABB’s product portfolio, tailored to enable seamless data exchange between controllers, field devices, and enterprise-level systems. This module is widely used in industries such as power generation, oil and gas, chemical processing, and water treatment, where reliable communication and system integration are critical. Below is a detailed breakdown of its features, technical specifications, and applications.

1. Key Features

• Multi-Protocol Support:
  • Profibus DP: Acts as a Profibus DP master/slave for connecting field devices (sensors, actuators, I/O modules).
  • Modbus RTU/TCP: Enables integration with legacy systems and third-party PLCs/SCADA.
  • OPC UA/DA: Facilitates secure data exchange with IT/OT systems and cloud platforms.
• Redundancy and High Availability:
  • Supports dual-channel redundancy for critical communication paths.
  • Hot-swappable design allows module replacement without system downtime.
• Robust Industrial Design:
  • IP20-rated enclosure for protection against dust and limited moisture.
  • Operating Temperature: -25°C to +70°C (-13°F to +158°F).
  • EMC Compliance: Meets IEC 61000-6-2/4 standards for electromagnetic immunity.
• Diagnostics and Monitoring:
  • Real-time status LEDs for power, network activity, and fault detection.
  • Advanced diagnostics via ABB’s engineering tools (e.g., Control Builder M).

2. Technical Specifications

3. Functional Capabilities

• Profibus DP Master/Slave Operation:
  • Coordinates communication with up to 126 Profibus DP slaves (e.g., remote I/O, drives, valves).
  • Configurable baud rates and slave addressing via GSD files (device-specific configuration).
• Modbus Gateway:
  • Translates Modbus RTU (serial) to Modbus TCP (Ethernet) for hybrid network architectures.
• OPC UA Integration:
  • Enables secure, standardized data exchange with enterprise systems (e.g., MES, ERP).
• Redundant Communication:
  • Dual-network configurations ensure uninterrupted data flow in mission-critical applications.

4. Applications

• Power Generation:
  • Integration of turbine control systems with Profibus DP field devices.
  • Grid stability monitoring via Modbus TCP/OPC UA.
• Oil & Gas:
  • Offshore platform automation with redundant Profibus DP networks.
  • Pipeline pressure and flow monitoring.
• Chemical Plants:
  • Bridging legacy Modbus RTU instruments to modern DCS (e.g., ABB 800xA).
• Water Treatment:
  • Real-time data aggregation from distributed pumps and sensors.

5. Integration with ABB Systems

• AC 800M Controllers: Direct compatibility with ABB’s flagship DCS controllers.
• S800 I/O Series: Integrates with remote I/O racks for scalable system expansion.
• Industrial IT 800xA: Centralized monitoring and diagnostics via ABB’s DCS platform.

6. Advantages

• Interoperability: Bridges legacy and modern protocols, extending the lifespan of existing infrastructure.
• High Reliability: Redundant communication and rugged design for 24/7 operation.
• Ease of Configuration: User-friendly setup via Control Builder M software.
• Cybersecurity: OPC UA with encryption (TLS/SSL) ensures secure data transmission.

7. Software Tools

• Control Builder M:
  • Configures communication parameters, protocol mapping, and diagnostics.
• 800xA Operator Workplace:
  • Provides HMI visualization and network health monitoring.

8. Ordering and Compatibility

• Replacement Part: Use part number 3BHE022294R0103 for spares or upgrades.
• Compatible Systems:
  • ABB AC 800M, S800 I/O, Symphony Plus, and third-party devices via Modbus/OPC.

9. Summary
