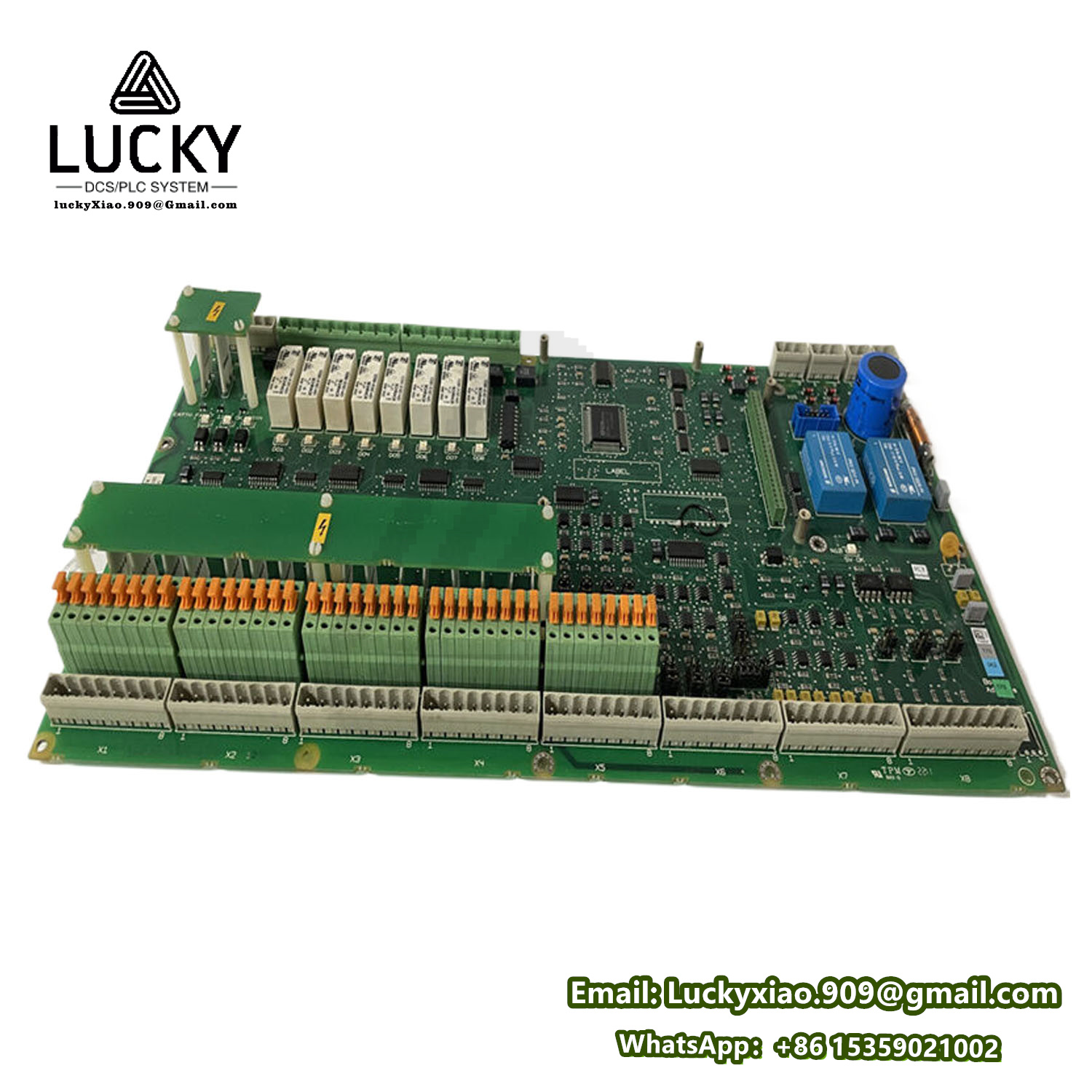

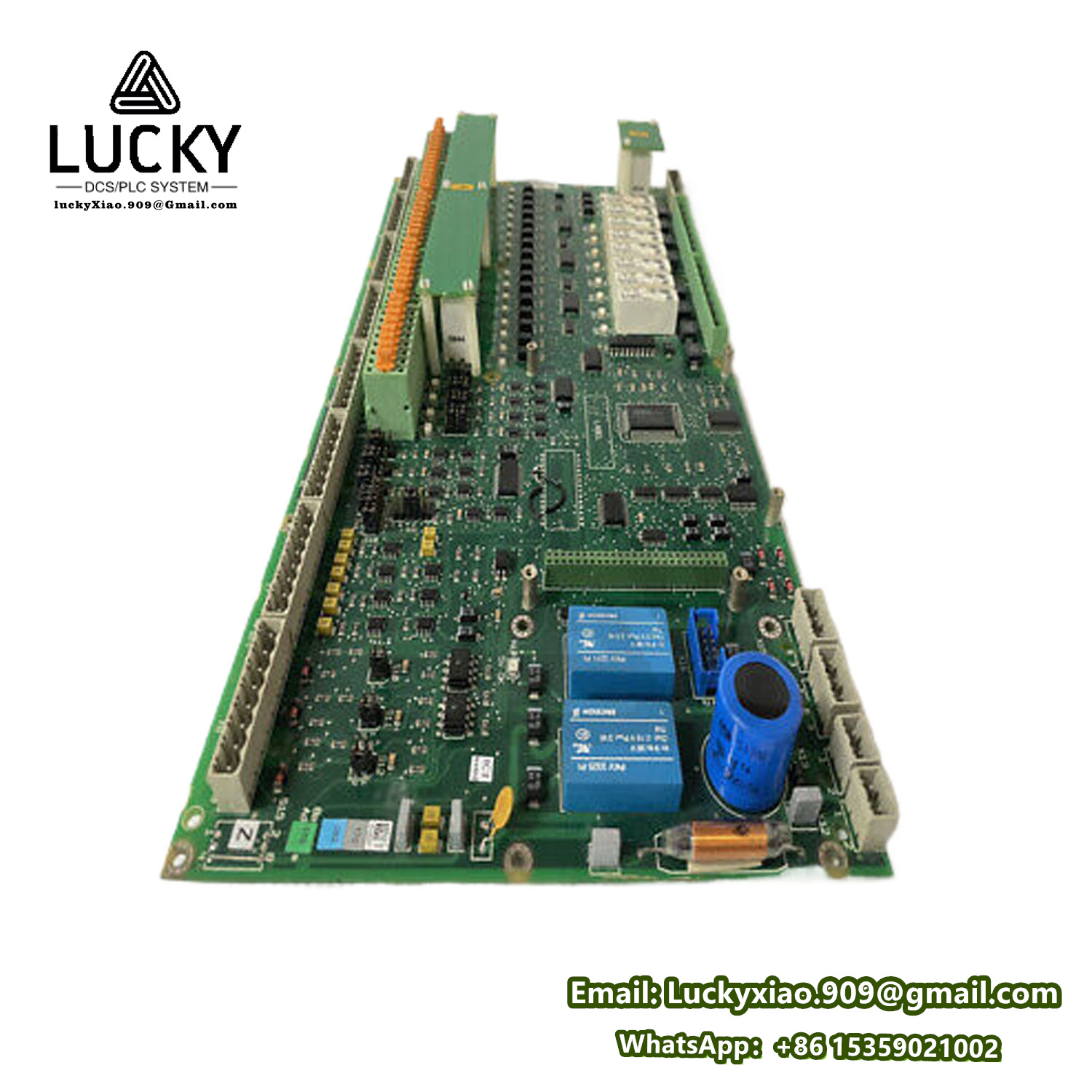

ABB DATX110 3ASC25H209 – Data Acquisition and Communication Module
The ABB DATX110 3ASC25H209 is a versatile communication and data acquisition module designed for integration with ABB’s AC 800M and S800 I/O automation systems. It enables real-time data exchange, protocol conversion, and seamless connectivity between field devices and control systems in industrial applications such as power generation, oil and gas, and manufacturing.
Technical Parameters
|
Category
|
Specification
|
|---|---|
|
Module Type
|
Communication interface and data acquisition module
|
|
Power Supply
|
24 V DC (±20%), redundant power inputs supported
|
|
Communication Protocols
|
– Modbus RTU/TCP
– PROFIBUS DP/PA – OPC UA – EtherNet/IP |
|
Data Transfer Rate
|
10/100 Mbps (Ethernet), 12 Mbps (PROFIBUS DP)
|
|
I/O Compatibility
|
ABB S800 I/O modules (analog, digital, HART)
|
|
Operating Temperature
|
-25°C to +70°C
|
|
Humidity
|
5–95% (non-condensing)
|
|
Certifications
|
CE, UL, RoHS, IEC 61131-2, IEC 61850-3 (optional)
|
|
Redundancy
|
Supports redundant communication paths and power supplies
|
|
Protection Class
|
IP20 (standard enclosure)
|
Functional Features
- Multi-Protocol Communication
- Acts as a protocol converter between Modbus, PROFIBUS, and EtherNet/IP for seamless integration of legacy and modern devices.
- Supports OPC UA for secure data exchange in Industry 4.0 applications.
- Real-Time Data Acquisition
- High-speed sampling and transmission of analog/digital signals from field sensors and actuators.
- Configurable data buffering for uninterrupted operation during network interruptions.
- Diagnostics & Health Monitoring
- Built-in diagnostics for network health (latency, packet loss) and device status.
- LED indicators for power, communication activity, and fault alerts.
- Redundancy & Reliability
- Hot-swappable design for maintenance without system downtime.
- Redundant Ethernet ports for network failover (RSTP, PRP).
- Cybersecurity
- Role-based access control and encrypted communication (TLS/SSL).
- Compliance with IEC 62443 standards for industrial network security.
- Scalability
- Modular architecture supports expansion with additional I/O modules (e.g., S800 series).
- Compatible with ABB’s 800xA system for centralized monitoring and control.
- Industrial Resilience
- High immunity to electromagnetic interference (EMI) and voltage surges.
- DIN rail mounting for secure installation in control cabinets.
Typical Applications
- Power Plants: Grid synchronization, turbine control, and substation automation.
- Oil & Gas: Pipeline monitoring, SCADA systems, and remote wellhead control.
- Manufacturing: Integration of PLCs, robotics, and production line sensors.
- Water Treatment: Real-time data aggregation from pumps, valves, and level sensors.
Compliance & Standards
- Safety: SIL 2/3 (IEC 61508), ATEX (optional).
- EMC: IEC 61000-6-2 (immunity), IEC 61000-6-4 (emissions).
- Environmental: RoHS, WEEE.
Conclusion
The ABB DATX110 3ASC25H209 is a critical component for bridging field devices and control systems in industrial automation. Its multi-protocol support, redundancy features, and robust design ensure reliable data exchange in harsh environments. Integrated with ABB’s AC 800M ecosystem, it enhances operational efficiency, scalability, and cybersecurity for applications ranging from power generation to smart manufacturing.
