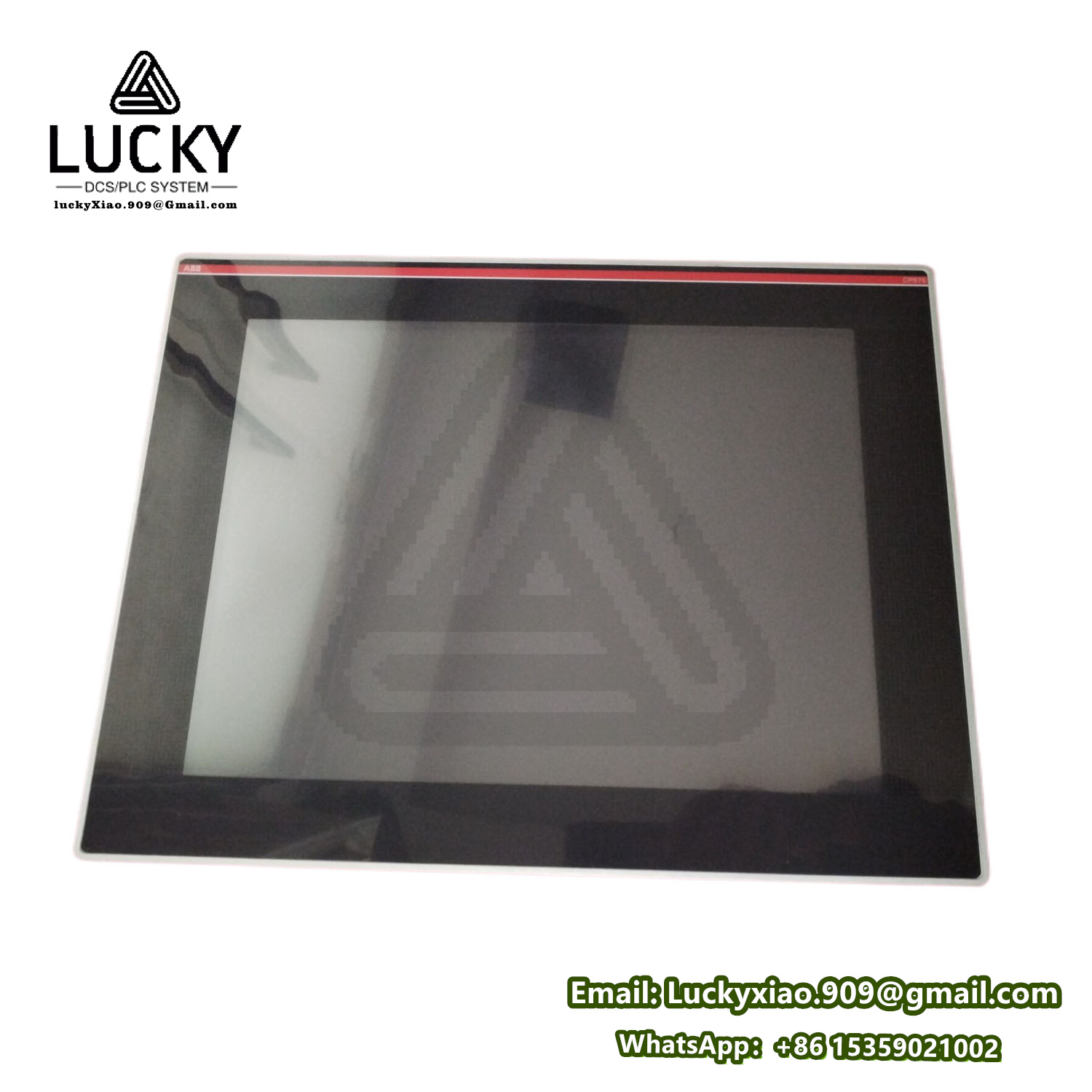

ABB CP676 3ABD00038801 – Technical Specifications, Functions, and Applications
Technical Parameters
The ABB CP676 3ABD00038801 is a high-performance industrial operator panel designed for human-machine interface (HMI) applications in automation systems. It features a 6.5-inch color TFT LCD display with a resolution of 640 x 480 pixels, providing clear visualization of process data and control interfaces. The panel operates on a 24 VDC power supply (±10%) and supports a wide temperature range of -20°C to +60°C, ensuring reliable performance in demanding industrial environments. With IP65 front-panel protection, it is resistant to dust, water jets, and mechanical impacts, making it suitable for harsh conditions. The device includes integrated USB ports for data transfer and configuration, along with Ethernet TCP/IP and serial communication ports (RS-232/RS-485) for seamless integration into control networks. It complies with CE, UL, and IEC standards for safety and electromagnetic compatibility.
Key Functions
This HMI panel offers intuitive touchscreen navigation for real-time monitoring and control of industrial processes. It supports multi-language interfaces, enabling global deployment across diverse workforces. The panel’s built-in alarm management system provides visual and audible alerts for critical events, ensuring rapid operator response. It allows dynamic data logging to track process variables, which can be exported via USB for analysis. The CP676 is compatible with ABB’s Automation Builder and other PLC/DCS systems, enabling easy configuration and integration with automation architectures. Its user-defined screens and templates simplify customization for specific workflows, while password-protected access ensures secure operation in sensitive environments.
Application Fields
The ABB CP676 3ABD00038801 is widely used in industries requiring robust operator interfaces. In manufacturing, it controls assembly lines, robotic systems, and packaging machinery. Energy and utilities leverage it for monitoring power distribution, substations, and renewable energy plants. Within water and wastewater treatment, it manages pump stations, filtration systems, and chemical dosing. The panel is also deployed in oil and gas facilities for pipeline control and safety systems, as well as in transportation for traffic management and railway signaling. Its rugged design and versatile communication capabilities make it ideal for food and beverage processing, pharmaceutical production, and mining operations where reliability and clear operator interaction are critical.
This HMI panel combines durability, user-friendly design, and advanced connectivity to enhance operational efficiency across diverse industrial sectors.
