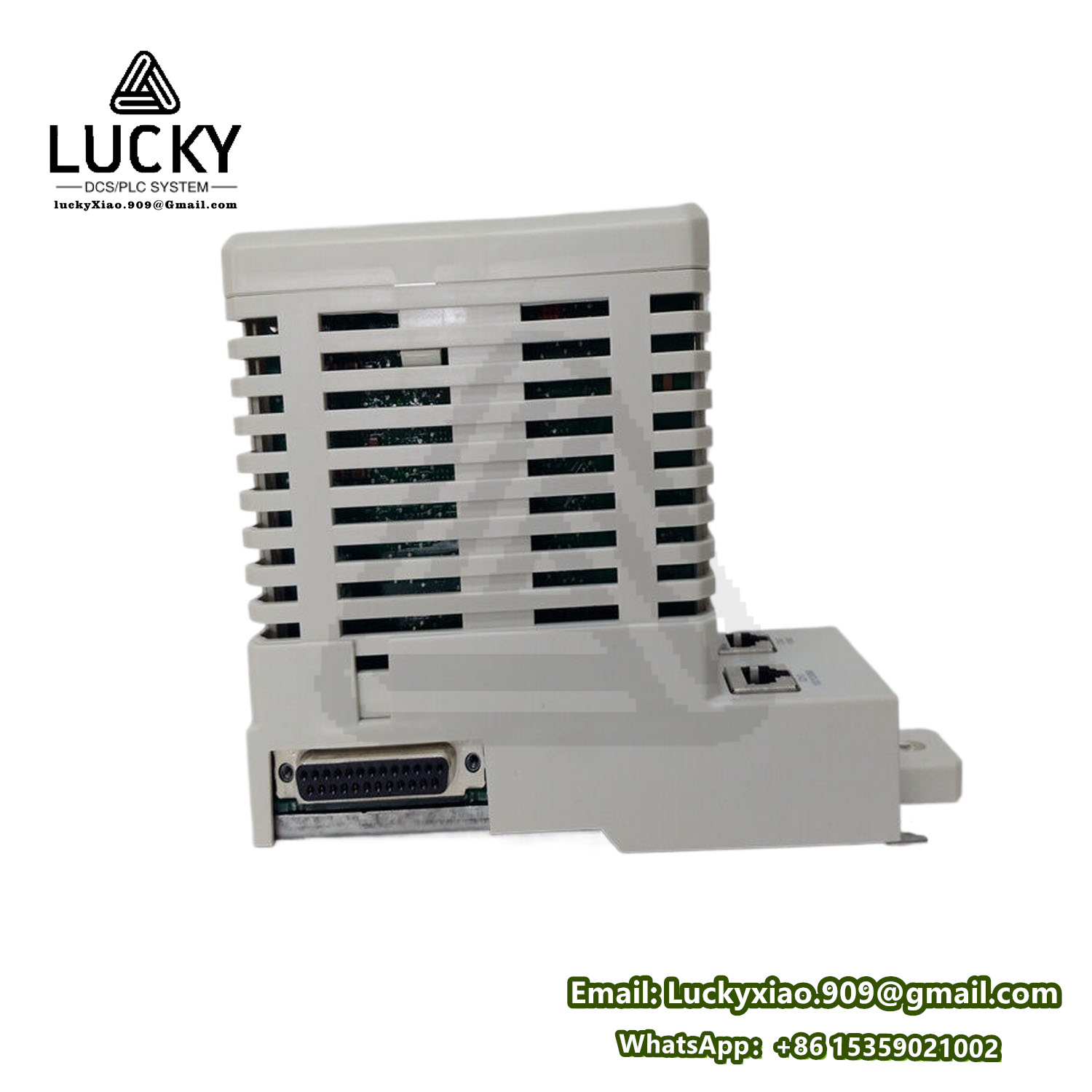

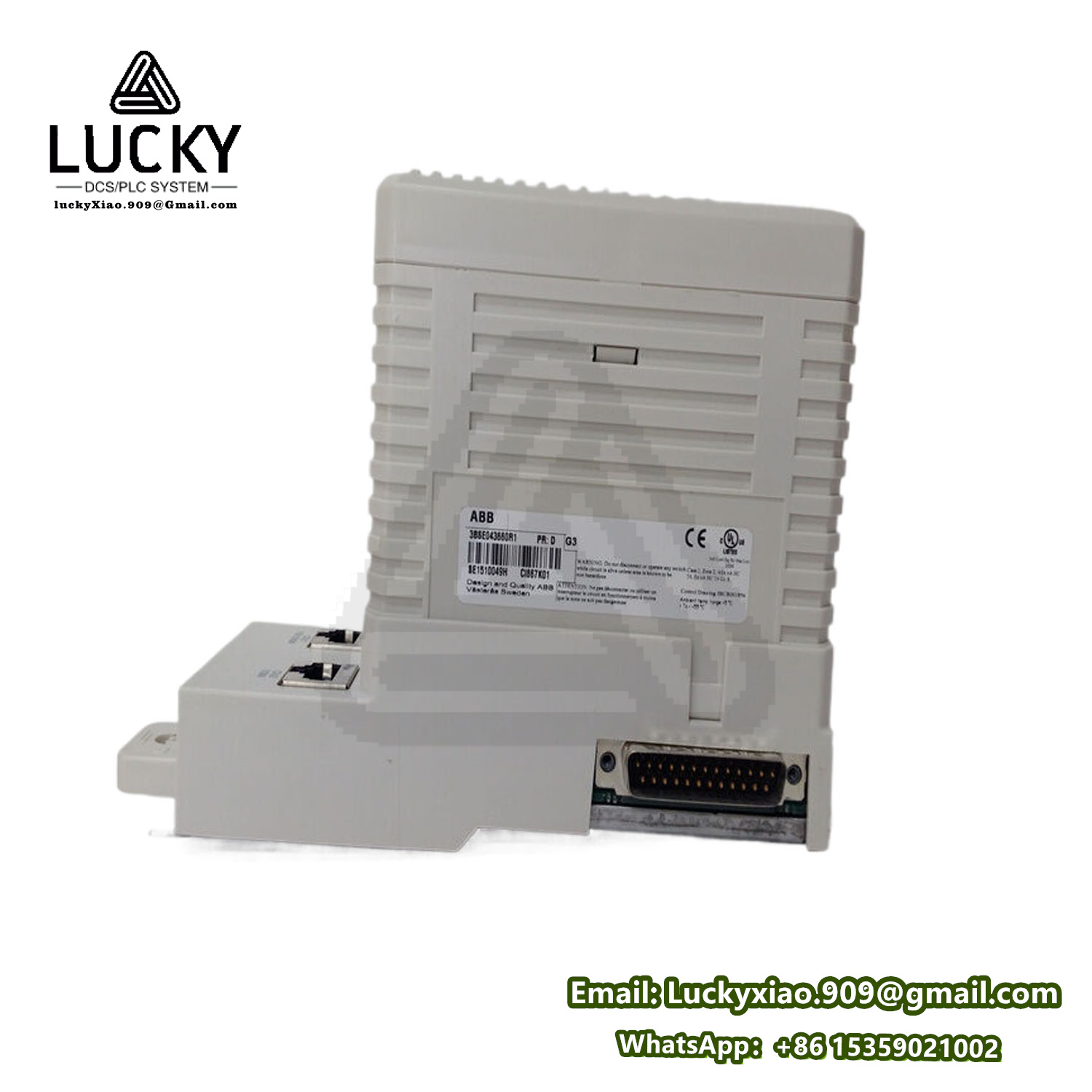

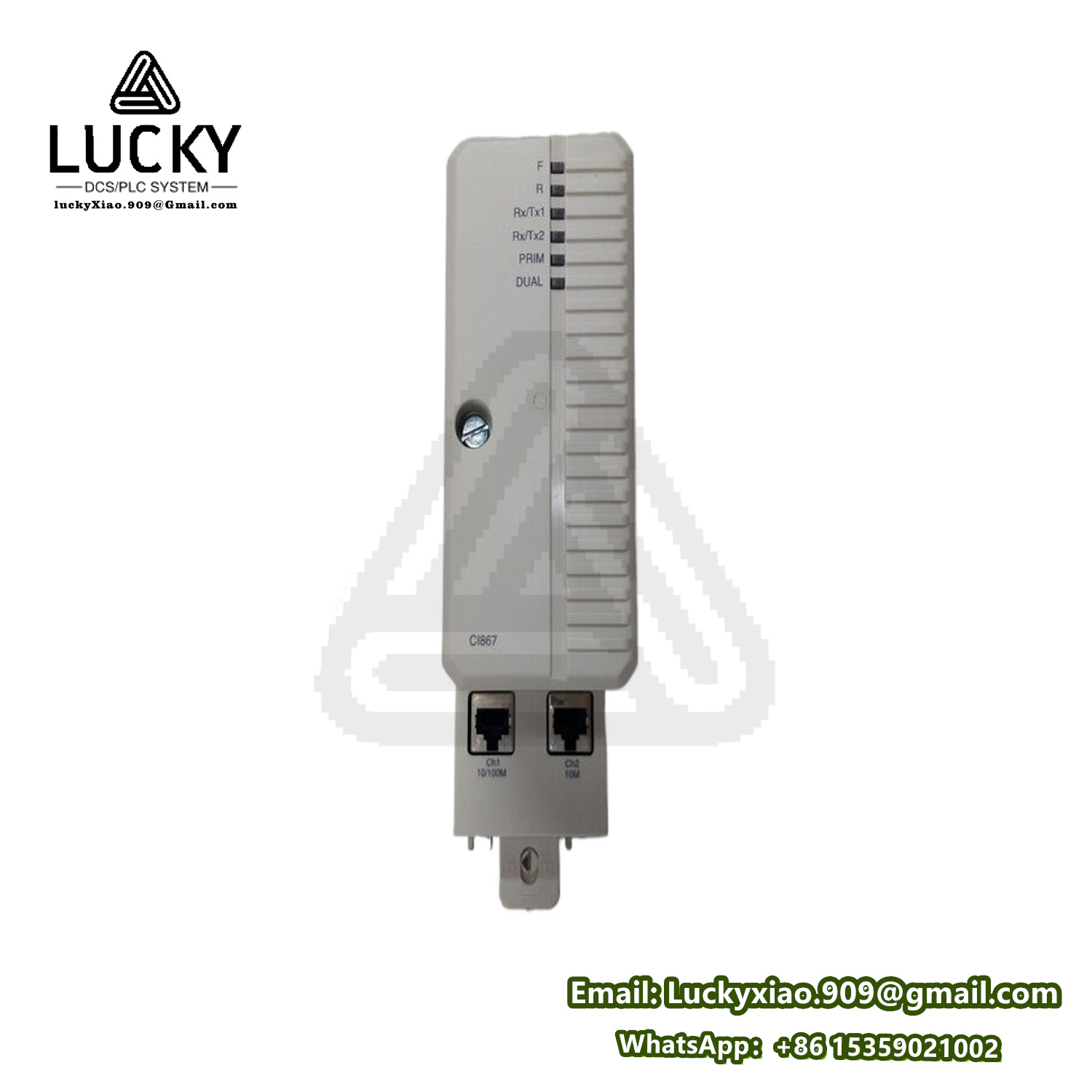

ABB CI867 3BSE043661R1 Communication Interface Module

ABB CI867 3BSE043661R1 Communication Interface Module

The ABB CI867 3BSE043661R1 is a high-performance communication interface module designed for ABB’s AC 800M and System 800xA control platforms. It enables seamless integration of field devices, third-party systems, and industrial networks into ABB’s automation architecture by supporting multiple communication protocols. This module is critical for real-time data exchange, remote I/O management, and interoperability in complex industrial environments such as power plants, oil refineries, and chemical processing facilities. Its robust design ensures reliable operation in harsh conditions while maintaining compatibility with ABB’s ecosystem of controllers, HMIs, and engineering tools.

Technical Specifications

Model: CI867 3BSE043661R1
Type: Communication Interface Module
Power Supply: 24 VDC (±20%), 5–10 W power consumption.
Operating Temperature: -25°C to +70°C (-13°F to +158°F).
Communication Protocols:

• PROFIBUS DP: Master/slave functionality, up to 12 Mbps.
• Modbus TCP/RTU: For legacy and modern SCADA integration.
• OPC UA/DA: Secure data exchange with IT/OT systems.
  Certifications: CE, UL, RoHS, and optional ATEX/IECEx for hazardous areas.
  Memory: 16 MB Flash, 8 MB RAM for protocol handling and buffering.

Key Functional Features

1. Multi-Protocol Support:
   • Acts as a gateway between PROFIBUS, Modbus, and OPC UA networks, enabling cross-platform data sharing.
   • Configurable as a PROFIBUS DP master or slave to interface with sensors, drives, and PLCs.
2. Real-Time Data Integration:
   • Synchronizes data between AC 800M controllers and field devices with millisecond-level latency.
   • Supports cyclic and acyclic communication for process control and diagnostics.
3. Redundancy and Reliability:
   • Optional redundant communication paths for mission-critical applications.
   • Hot-swappable design minimizes downtime during maintenance or upgrades.
4. Diagnostics and Monitoring:
   • Built-in LEDs for status indication (power, communication activity, faults).
   • Integration with ABB’s Control Builder M for remote diagnostics and health checks.
5. Cybersecurity:
   • Implements role-based access control, encrypted OPC UA communication, and firewall rules.

Applications

• Power Generation: Integration of turbine control systems with grid management SCADA.
• Oil & Gas: Real-time data acquisition from offshore platforms and pipeline networks.
• Manufacturing: Bridging legacy Modbus devices with modern IIoT platforms.
• Water Treatment: Remote monitoring of pump stations and valve actuators via PROFIBUS.

Installation and Configuration

1. Hardware Setup:
   • Mount the module on a DIN rail within an AC 800M or System 800xA rack.
   • Connect 24 VDC power and shielded PROFIBUS/Modbus cables.
2. Network Configuration:
   • Assign PROFIBUS addresses via DIP switches or software settings.
   • Use Control Builder M to map I/O signals and configure protocol parameters.
3. Software Integration:
   • Define data points in System 800xA for HMI visualization and historization.
   • Enable OPC UA server/client functionality for cloud or ERP connectivity.

Maintenance and Support

• Firmware Updates: Deploy via Control Builder M or SD card.
• Troubleshooting: Use ABB’s Field Information Manager (FIM) for protocol-specific error analysis.
• Lifecycle Management: ABB provides 15+ years of technical support and spare parts availability.
