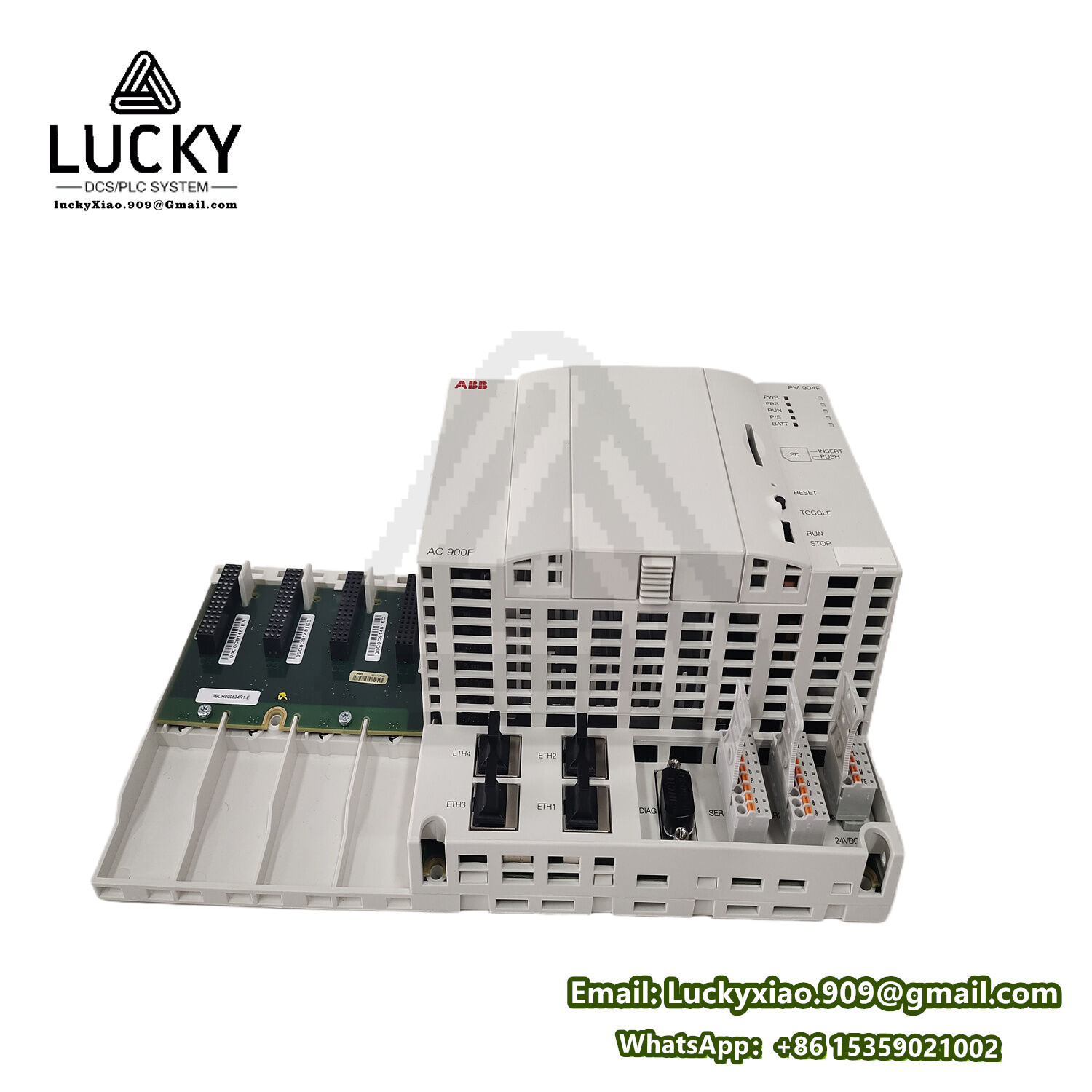

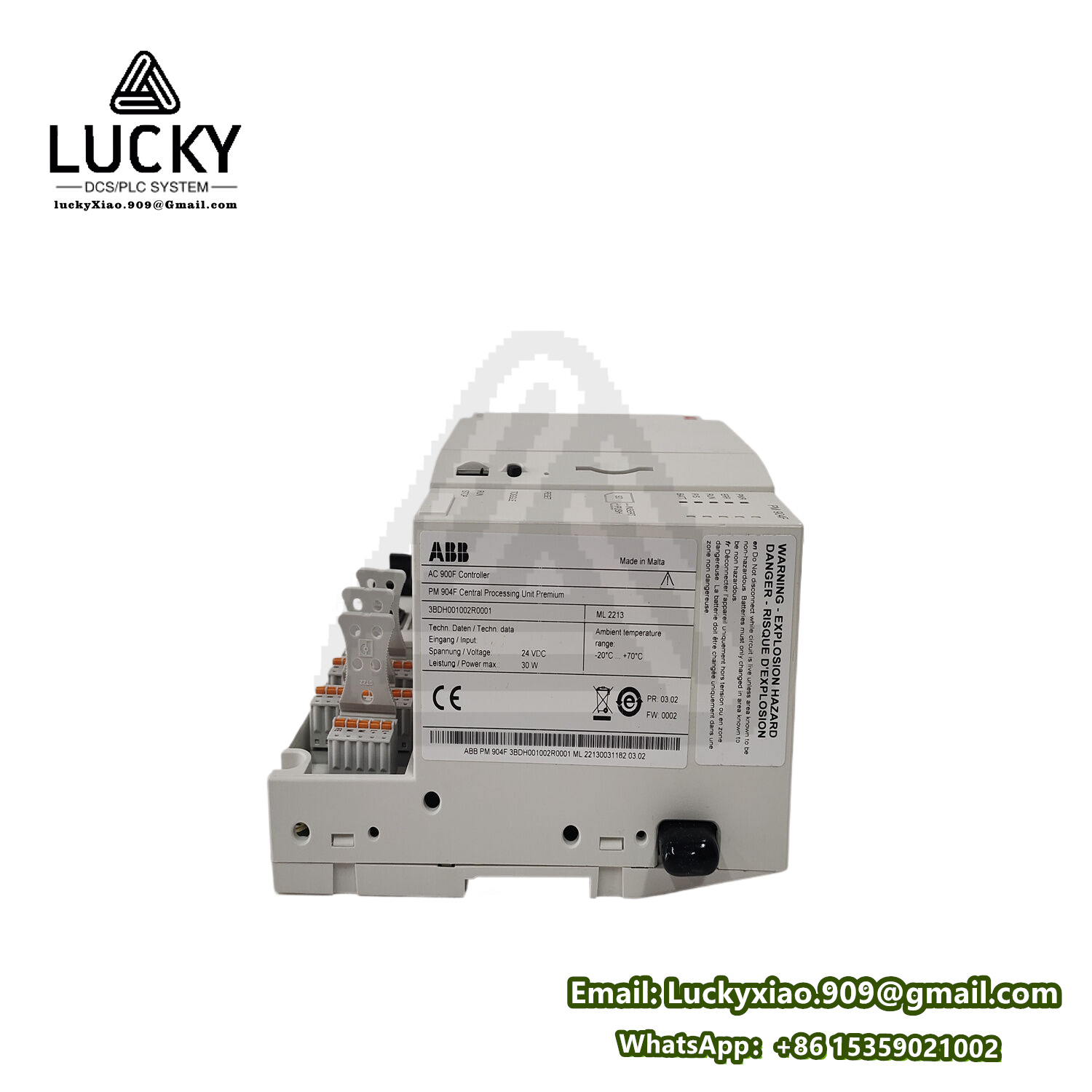

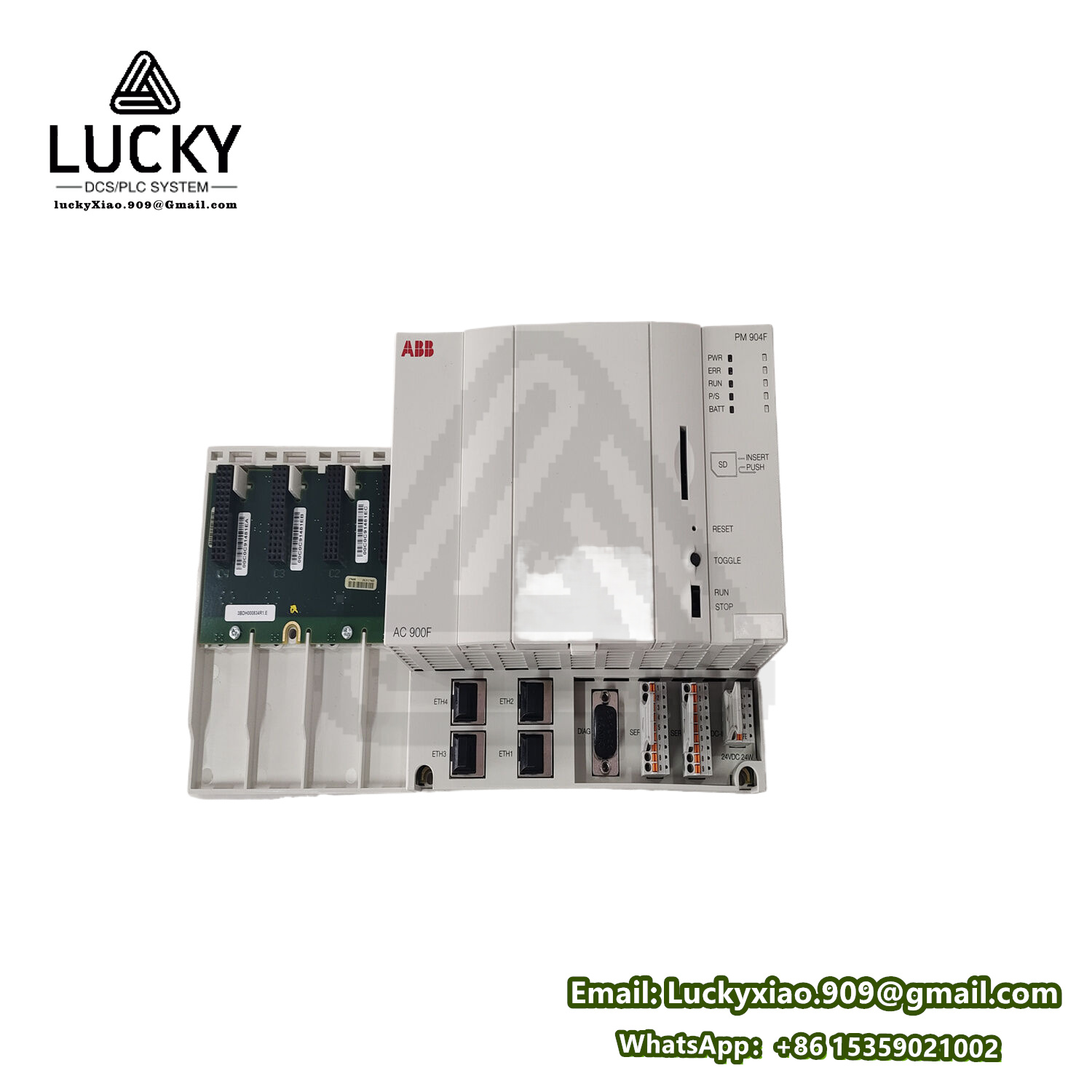

ABB  AC900F PM904F 3BDH001002R0001 controller

ABB AC900F PM904F 3BDH001002R0001 Controller

The ABB AC900F PM904F 3BDH001002R0001 is a highly advanced and powerful controller within the ABB Freelance series, specifically designed for industrial automation control and process optimization. This controller represents the cutting edge of distributed control system (DCS) technology, offering unparalleled performance, speed, and functionality.

Key Features and Specifications

1. CPU Module:
   • The PM904F 3BDH001002R0001 serves as the core of the AC900F controller, responsible for processing and controlling various functions of the system.
   • It is equipped with an 800 MHz CPU clock and 48 MB of controller memory (with 16 MB battery buffered RAM), ensuring rapid processing and data handling capabilities.
2. Communication Interfaces:
   • The module supports up to four communication interfaces for PROFIBUS or CAN, providing flexible connectivity options.
   • It also offers four Ethernet interfaces (RJ45), three of which can be used for Modbus TCP and Telecontrol IEC 60870-5-104, while the fourth is dedicated to a redundancy link.
   • Additionally, it supports SD cards for easy controller backup and firmware updates.
3. I/O and Fieldbus Support:
   • The AC900F controller can accommodate up to ten S700 I/O modules directly attached to terminal units.
   • It supports remote I/Os, transmitters, actuators, drives, and other devices through fieldbus protocols such as PROFIBUS.
4. Redundancy Options:
   • Optional redundancy is available to enhance system availability and reliability, ensuring uninterrupted operation in critical applications.
5. Display and Diagnostics:
   • An optional 64×128 Dot Matrix LCD display provides easy access to status and diagnostics information.
   • This feature allows operators to monitor system performance and troubleshoot issues in real-time.
6. Environmental Compliance:
   • The controller is G3 compliant, making it suitable for use in harsh industrial environments.
   • It operates within a temperature range of -20 to +70°C (-4 to 158°F) without forced cooling, ensuring robust performance even in challenging conditions.
7. Certifications and Compliance:
   • The PM904F 3BDH001002R0001 controller holds certifications such as CE, c(UL)us, Class 1 Div 2, ISA-S71.04, and NAMUR, ensuring compliance with international standards and regulations.
8. Software and Programming:
   • The controller is compatible with ABB Freelance Control Builder software, providing a graphical programming interface that simplifies configuration and debugging processes.
   • This software enables users to efficiently design, implement, and maintain control systems tailored to their specific requirements.

Applications

The ABB AC900F PM904F 3BDH001002R0001 controller is ideal for a wide range of industrial applications, including:

• Process Control: Suitable for applications in the chemical, oil and gas, and power industries, where precise control and monitoring of process variables are crucial.
• Factory Automation: Enhances automation efficiency and accuracy in automated production systems by processing analog and digital signals from sensors and actuators.
• Intelligent Manufacturing: Supports smart factories and the Industrial Internet of Things (IIoT), enabling seamless integration of various devices and systems for real-time monitoring, control, and optimization of manufacturing processes.

In conclusion, the ABB AC900F PM904F 3BDH001002R0001 controller is a high-performance, reliable, and versatile solution for industrial automation and process control systems. Its advanced features and specifications make it an ideal choice for applications requiring precise control, real-time monitoring, and high system availability.
