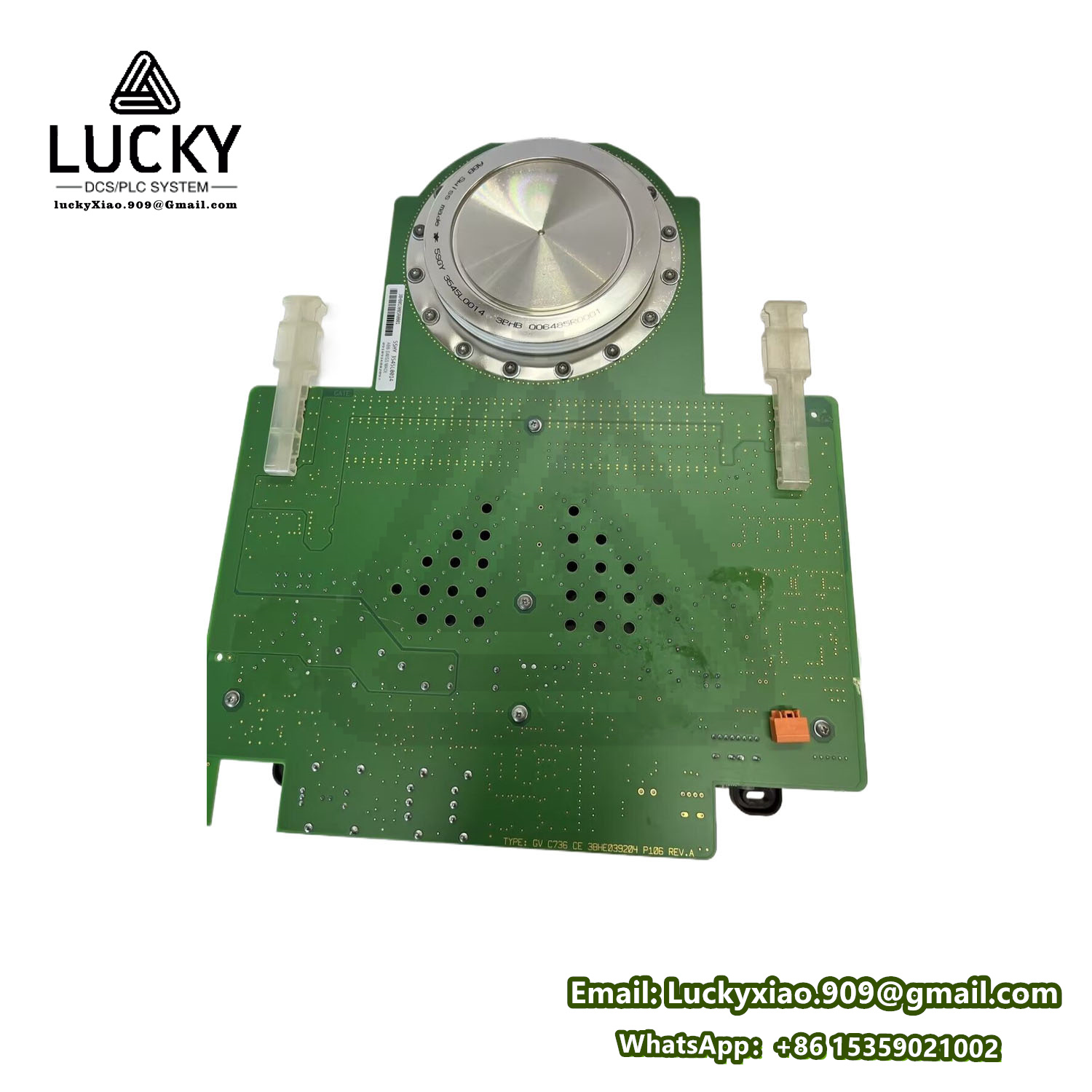

ABB 5SHY3545L0014 3BHB013085R0001 IGBT Module
The ABB 5SHY3545L0014 3BHB013085R0001 is a high-power Insulated Gate Bipolar Transistor (IGBT) module designed for industrial drives, renewable energy systems, and power electronic applications. It is part of ABB’s HiPak series, renowned for reliability and efficiency in medium- to high-voltage applications. Below is a detailed overview of its features, technical specifications, and industrial use cases.
1. Key Features
- High Power Handling:
- Voltage Rating: 3300 V (collector-emitter voltage, VCES).
- Current Rating: Up to 1200 A (continuous collector current, IC at 80°C).
- Switching Frequency: Optimized for low-loss operation in high-power inverters and converters.
- Robust Construction:
- Press-Pack Technology: Patented design ensuring low thermal resistance and mechanical stability.
- Isolated Baseplate: Allows direct mounting to heatsinks without insulation layers.
- Advanced Protection:
- Short-circuit and overcurrent protection via integrated sensors.
- Temperature monitoring through built-in NTC thermistor.
- Application Flexibility:
- Suitable for HVDC (High-Voltage Direct Current), STATCOM, and industrial motor drives.
2. Technical Specifications
|
Parameter
|
Details
|
|---|---|
|
Part Number
|
|
|
Module Type
|
IGBT (Insulated Gate Bipolar Transistor) with anti-parallel diode
|
|
Voltage Rating (VCES)
|
3300 V
|
|
Current Rating (IC)
|
1200 A (continuous at 80°C)
|
|
Pulsed Current (ICP)
|
2400 A (max)
|
|
Power Dissipation
|
5200 W (max at Tvj = 125°C)
|
|
Switching Speed
|
Optimized for low loss (typical turn-off time: 1–3 µs)
|
|
Isolation Voltage
|
6000 V (baseplate to terminals)
|
|
Operating Temperature
|
-40°C to +125°C (junction temperature)
|
|
Weight
|
Approx. 8.5 kg
|
|
Certifications
|
UL, CE, RoHS compliant
|
3. Functional Capabilities
- High Efficiency:
- Low conduction and switching losses enhance energy efficiency in power conversion systems.
- Modular Design:
- Compatible with ABB’s ACS 2000 and ACS 6000 drive systems for easy integration.
- Reliability in Harsh Environments:
- Resistant to thermal cycling and mechanical stress, ideal for heavy industrial use.
4. Applications
- Industrial Motor Drives:
- High-power AC/DC drives for mining, cement, and metal processing industries.
- Renewable Energy Systems:
- Wind turbine converters, solar power inverters, and grid stabilization (STATCOM).
- Transportation:
- Traction converters for railways and electric vehicles.
- HVDC Transmission:
- Power conversion in high-voltage direct current transmission networks.
5. Advantages
- High Power Density: Compact design reduces system footprint.
- Long Service Life: Robust construction minimizes downtime and maintenance costs.
- Scalability: Stackable modules for multi-level inverter topologies.
- Global Support: Backed by ABB’s technical service network.
6. Ordering and Compatibility
- Replacement Part: Use part number 3BHB013085R0001 for spares or upgrades in ABB systems.
- Compatible Drives:
- ABB ACS 2000, ACS 6000, and PCS 6000 series.
7. Safety and Maintenance
- Installation: Requires proper thermal management (heatsink and cooling system).
- Handling: Follow ESD (electrostatic discharge) precautions during installation.
- Monitoring: Use ABB’s DriveMonitor software for real-time performance tracking.
The ABB 5SHY3545L0014 3BHB013085R0001 is a critical component in high-power electronic systems, combining cutting-edge semiconductor technology with industrial durability.
