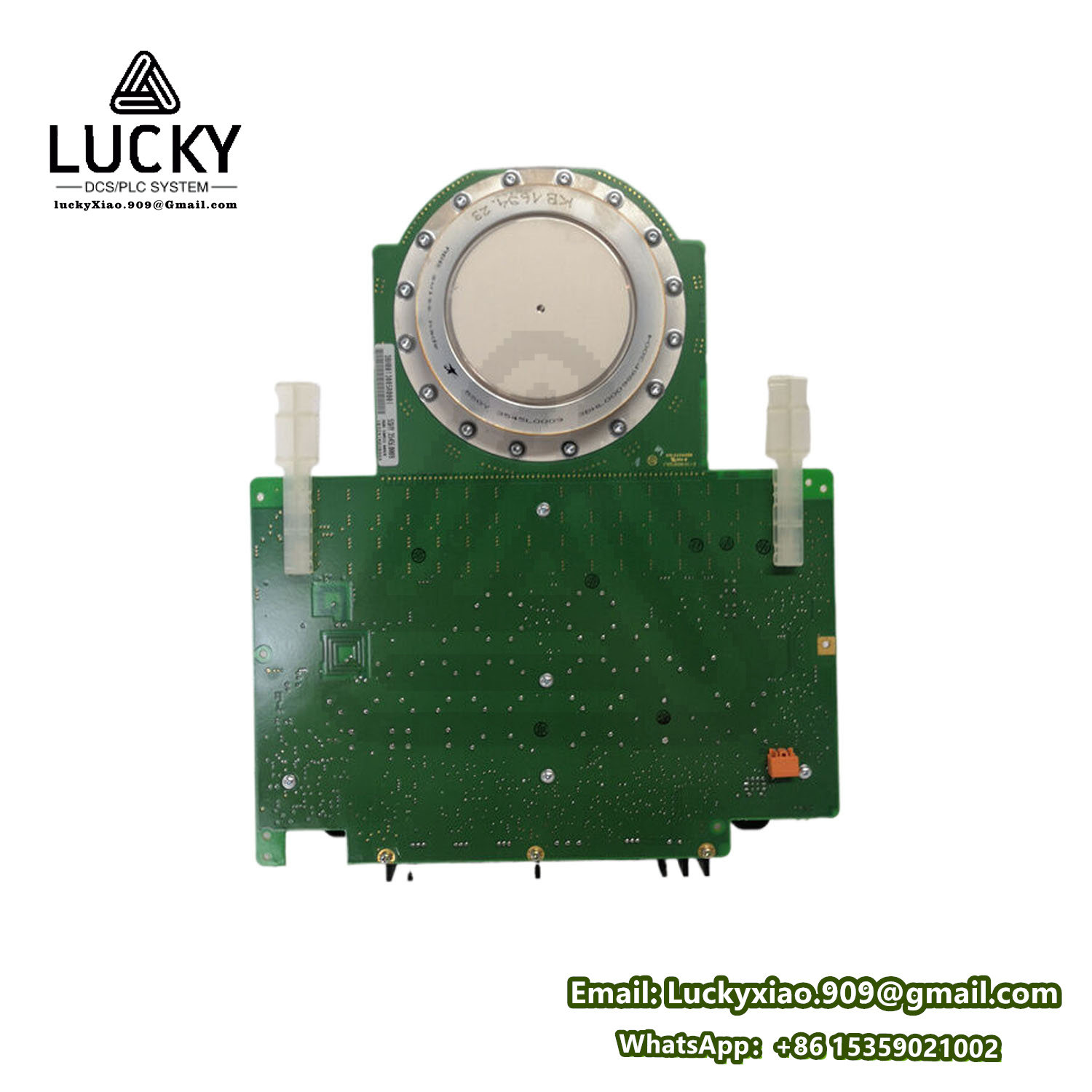

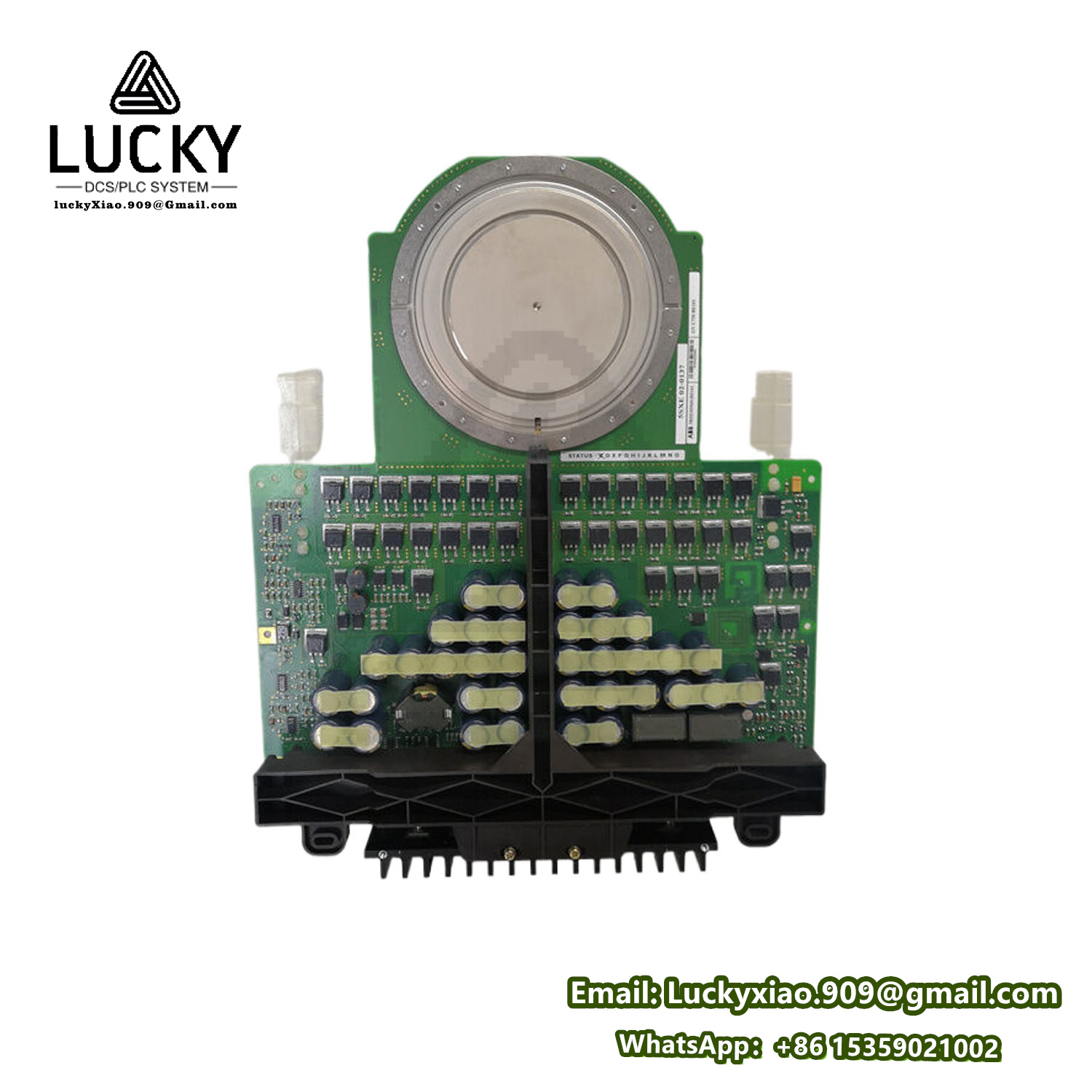

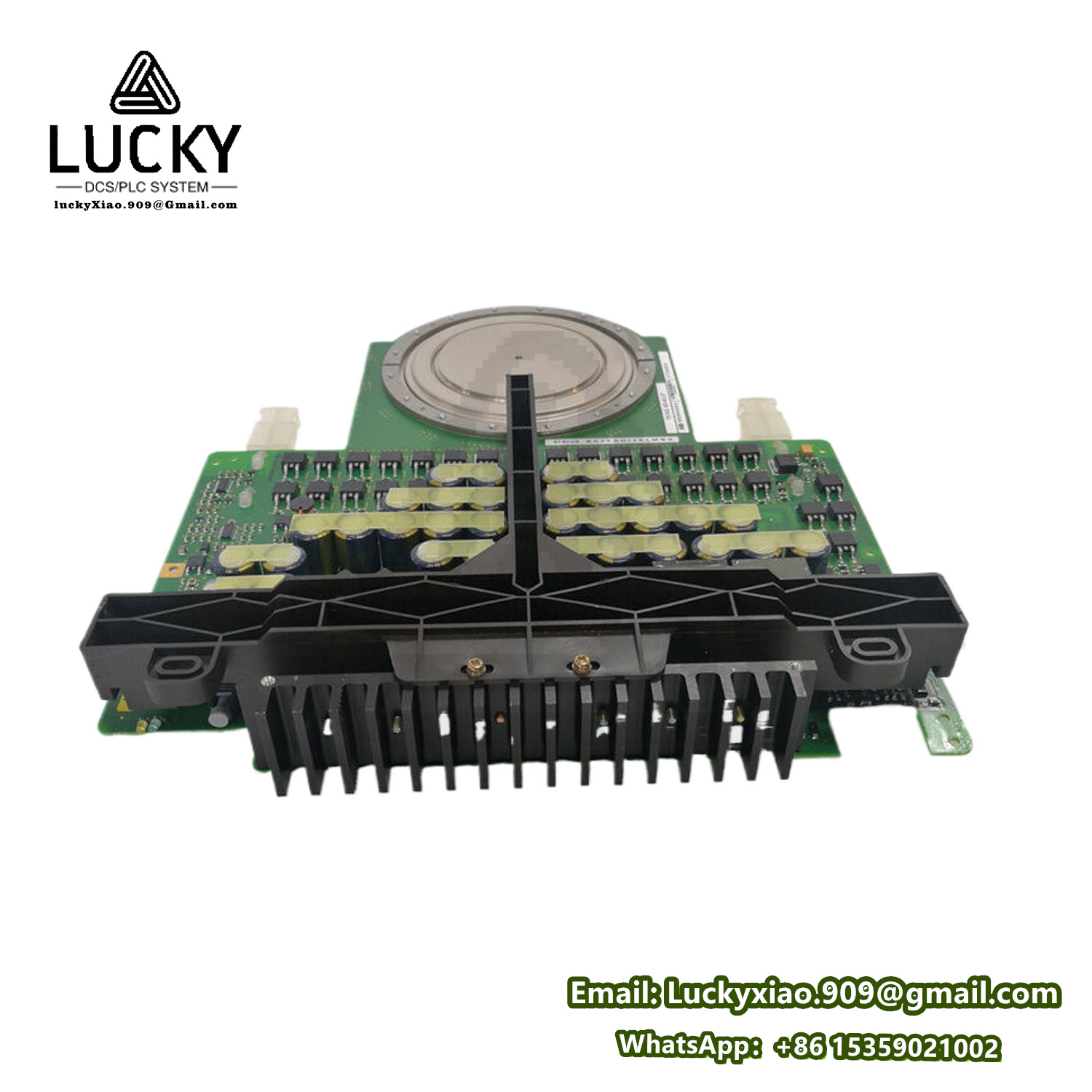

ABB 5SHY3545L0009 3BHB013085R0001 IGBT Module and Control Interface
The ABB 5SHY3545L0009 3BHB013085R0001 combines a high-power IGBT (Insulated Gate Bipolar Transistor) module and a control interface unit, designed for industrial power electronics applications such as motor drives, renewable energy systems, and high-voltage DC (HVDC) transmission. Below is a detailed breakdown of each component and their integration within industrial systems.
1. 5SHY3545L0009 – HiPak IGBT Module
Type: High-Power IGBT Module
Function:
- Acts as the primary switching device in power conversion systems, enabling efficient energy transfer by switching high voltages and currents.
- Used in inverters, converters, and motor drives for precise control of electrical power.
Key Specifications:
- Voltage Rating: 3300 V (VCES)
- Current Rating: 1200 A (IC at 80°C)
- Switching Frequency: Optimized for low-loss operation in high-power applications.
- Package: Press-pack technology for robust thermal and mechanical performance.
- Isolation Voltage: 6000 V (baseplate to terminals).
Applications:
- HVDC transmission, wind turbine converters, industrial motor drives.
- Certifications: UL, CE, RoHS.
2. 3BHB013085R0001 – Control Interface Module
Type: Gate Driver/Control Board
Function:
- Provides precise gate signals to control the switching of the IGBT module.
- Ensures safe operation through fault detection, isolation, and protection features.
Key Features:
- Isolation: Reinforced isolation (up to 6000 V) between control signals and power circuits.
- Protection: Overcurrent, short-circuit, and overtemperature protection for the IGBT.
- Compatibility: Designed to pair with ABB’s HiPak IGBT modules (e.g., 5SHY3545L0009).
- Communication: Integrates with higher-level control systems via analog/digital inputs and fiber-optic interfaces.
Applications:
- Motor control centers, traction systems, grid stabilization.
3. System Integration and Workflow
- Power Conversion Chain:
- The 3BHB013085R0001 control board receives control signals from a central controller (e.g., PLC or DCS).
- The gate driver generates precise pulses to switch the 5SHY3545L0009 IGBT module on/off, converting DC to AC (or vice versa).
- The IGBT module handles high-power switching, enabling efficient energy transfer to motors, grids, or renewable energy systems.
- Key Advantages:
- High Efficiency: Low switching losses and optimized thermal management.
- Reliability: Robust design for 24/7 operation in harsh environments.
- Scalability: Modular architecture supports multi-level configurations for megawatt-scale applications.
4. Technical Specifications Summary
Component
|
Parameter
|
Details
|
---|---|---|
5SHY3545L0009 (IGBT)
|
Voltage Rating
|
3300 V
|
|
Current Rating
|
1200 A
|
|
Package Type
|
Press-pack
|
3BHB013085R0001 (Driver)
|
Isolation Voltage
|
6000 V
|
|
Protection Features
|
Overcurrent, short-circuit, overtemperature
|
|
Communication Interfaces
|
Fiber-optic, analog/digital I/O
|
5. Applications
- Renewable Energy: Solar/wind power inverters, grid-tie systems.
- Industrial Drives: High-power motors for mining, steel mills, and pumps.
- Transportation: Rail traction systems, electric vehicle charging stations.
- Energy Transmission: HVDC converters for efficient long-distance power transfer.
6. Certifications and Compliance
- Safety Standards: IEC 61800-5-1 (adjustable speed electrical power drive systems).
- EMC: Complies with IEC 61800-3 for industrial environments.
- Environmental: RoHS, REACH.
7. Ordering and Compatibility
- Replacement Parts:
- 5SHY3545L0009: Order using part number 3BHB013085R0001 for the IGBT module.
- 3BHB013085R0001: Use part number 3BHB013085R0001 for the gate driver.
- Compatible Systems:
- Integrates with ABB’s ACS 6000, ACS 8000, and PCS 6000 drive systems.
8. Summary
The ABB 5SHY3545L0009 IGBT module and 3BHB013085R0001 control interface form a high-performance power electronics solution for industrial and energy applications. The IGBT module delivers robust switching capabilities, while the control interface ensures precise, safe operation. Together, they enable efficient energy conversion in demanding environments such as HVDC transmission, renewable energy systems, and heavy industrial drives.
