This combination of components represents a high-power industrial drive system from ABB, typically used in heavy-duty applications such as motor control, renewable energy conversion, and power grid stabilization. Below is a detailed breakdown of each module and their roles within the system.

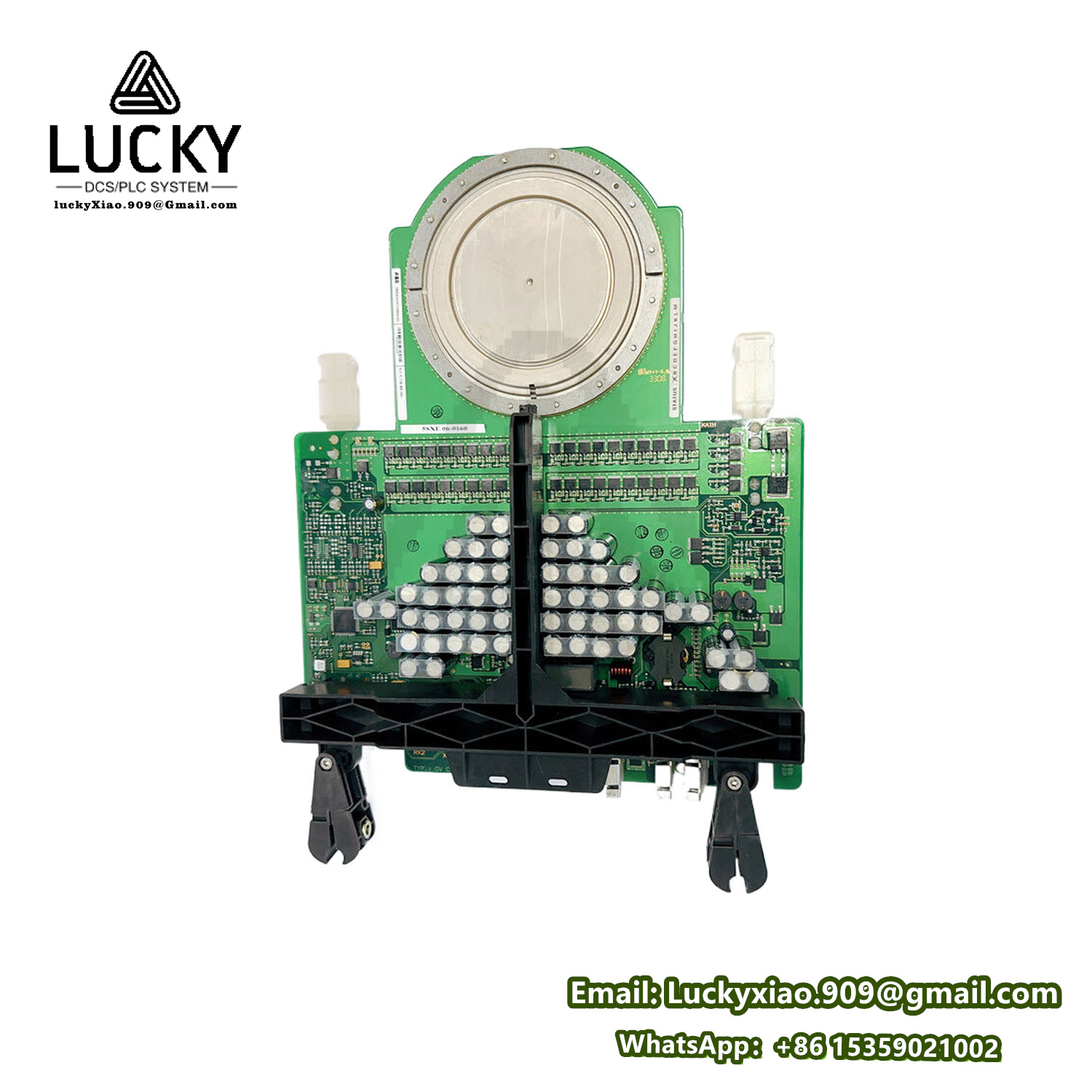

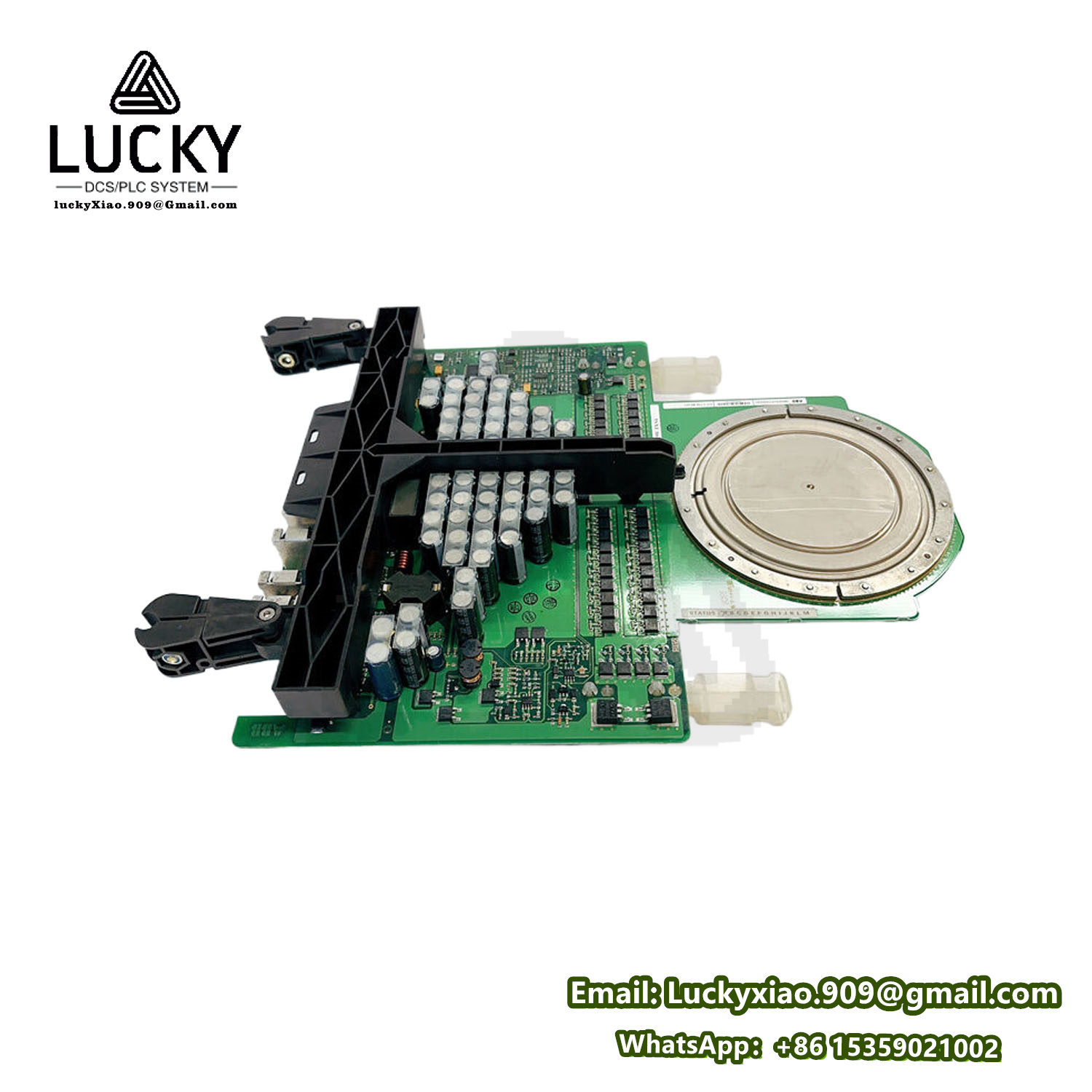

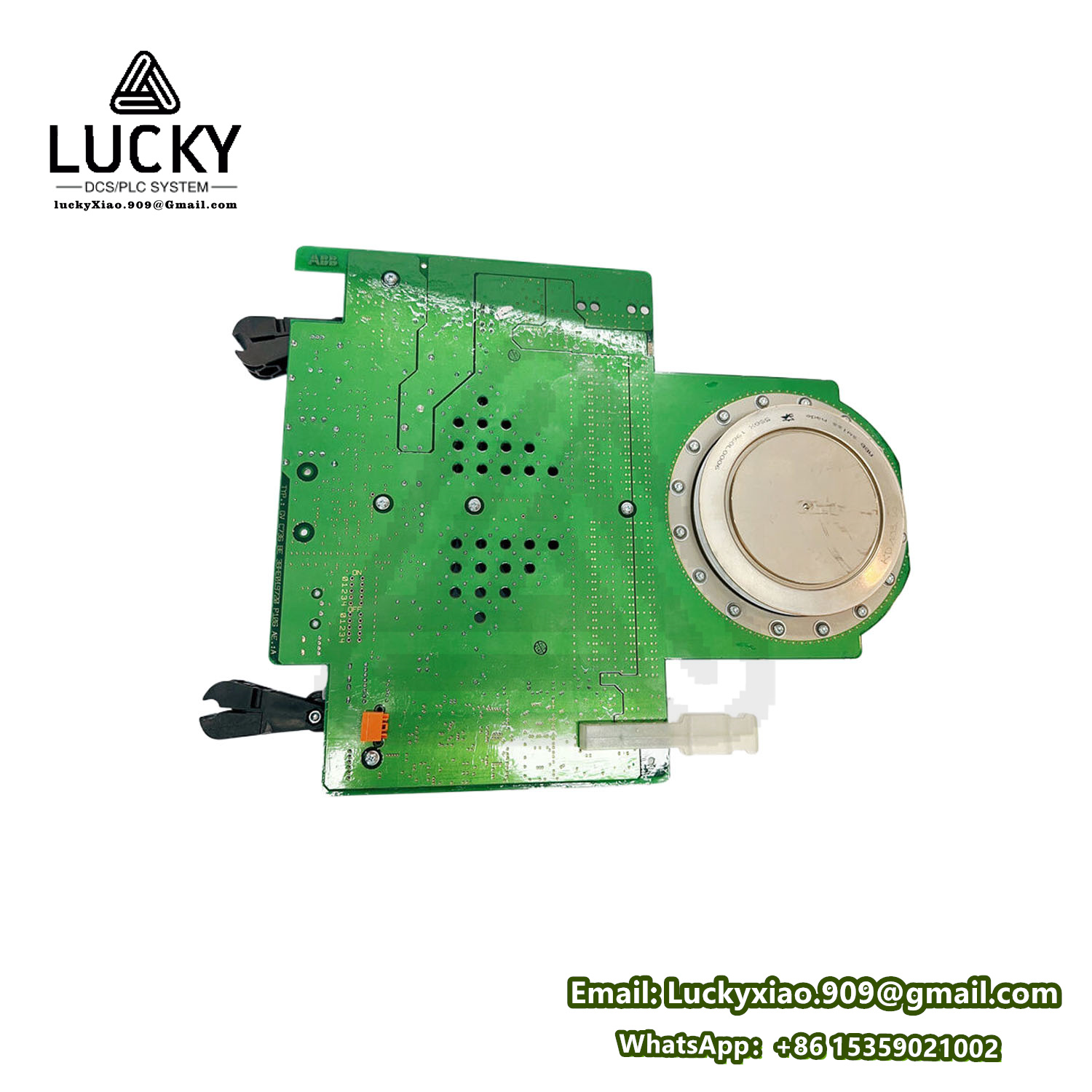

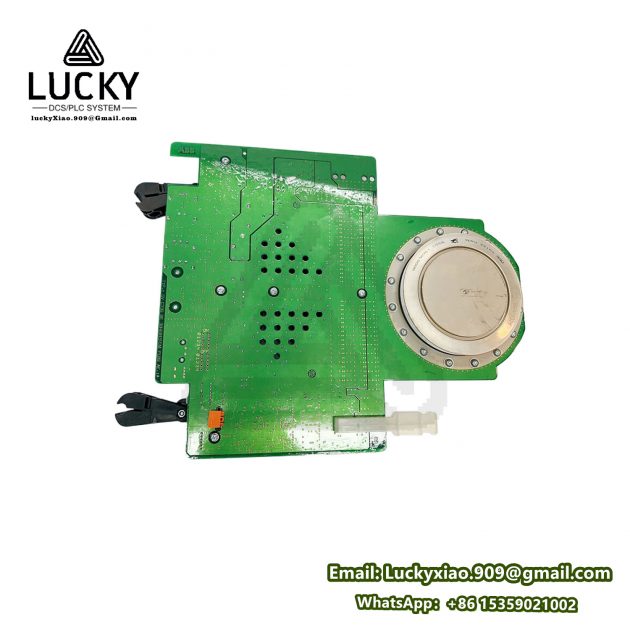

1. 5SHX1960L0006 – HiPak IGBT Module

Type: High-Power IGBT (Insulated Gate Bipolar Transistor) Module
Function:

• Acts as the core switching device for power conversion in inverters, converters, or motor drives.
• Enables efficient energy transfer by switching high voltages (up to thousands of volts) and currents.

Key Specifications:

• Voltage Rating: 3300 V (V_CES)
• Current Rating: 1200 A (I_C at 80°C)
• Switching Frequency: Optimized for low-loss operation in high-power applications.
• Package: Press-pack technology for robust thermal and mechanical performance.

Applications:

• HVDC transmission, wind turbine converters, industrial motor drives.
• Certifications: UL, CE, RoHS.

2. 3BHB016120R0002 – Control Interface Module

Type: Control Board/Interface Unit
Function:

• Provides signal processing and communication between the drive controller and external systems (e.g., PLCs, SCADA).
• Manages I/O signals, fault detection, and system diagnostics.

Key Features:

• Communication Protocols: Profibus DP, Modbus TCP, OPC UA.
• Integration: Compatible with ABB’s ACS 6000 and ACS 8000 drive systems.
• Diagnostics: Real-time monitoring of system health and error logging.

Applications:

• Motor control centers, power plant automation.

3. 3BHE019719R0101 – Power Supply Module

Type: Redundant Power Supply Unit
Function:

• Delivers stable and redundant DC power to the drive system’s control electronics and gate drivers.
• Ensures uninterrupted operation during power fluctuations.

Key Specifications:

• Input Voltage: 24 VDC or 230 VAC.
• Output Voltage: 24 VDC (±1%) with redundancy support.
• Power Rating: 500 W.
• Certifications: ATEX, IEC 61508 (SIL 2).

Applications:

• Critical power systems requiring high availability (e.g., offshore platforms, steel mills).

4. GVC736BE101 – Gate Drive Unit

Type: IGBT Gate Driver Card
Function:

• Controls the switching of the IGBT module (5SHX1960L0006) by generating precise gate signals.
• Provides isolation, protection, and monitoring for the IGBT.

Key Features:

• Isolation Voltage: 6000 V (reinforced isolation).
• Protection Features: Short-circuit, overcurrent, and overtemperature protection.
• Compatibility: Designed for ABB’s HiPak IGBT modules.

Applications:

• High-voltage inverters, traction systems, industrial drives.

5. System Integration and Workflow

• Power Conversion Chain:
  1. The 3BHE019719R0101 power supply provides stable DC power to the control electronics.
  2. The 3BHB016120R0002 control board processes commands (e.g., speed/torque setpoints) and communicates with higher-level systems.
  3. The GVC736BE101 gate driver translates control signals into precise gate pulses for the 5SHX1960L0006 IGBT module.
  4. The IGBT module converts DC to AC (or vice versa) to drive motors or feed power into grids.
• Key Advantages:
  • High Efficiency: Low switching losses and optimized thermal management.
  • Reliability: Redundant power and robust fault protection ensure 24/7 operation.
  • Scalability: Modular design supports multi-level configurations for megawatt-scale systems.

6. Applications

• Renewable Energy: Solar/wind power inverters, grid-tie systems.
• Industrial Drives: High-power motors for mining, cement, and metal processing.
• Transportation: Rail traction systems, electric vehicle fast chargers.
• Energy Transmission: HVDC converters for long-distance power transmission.

7. Certifications and Compliance

• Safety Standards: IEC 61800-5-1, UL 508C.
• EMC: Complies with IEC 61800-3 for industrial environments.
• Environmental: RoHS, REACH.

8. Summary

The ABB 5SHX1960L0006 IGBT module, combined with the 3BHB016120R0002 control interface, 3BHE019719R0101 power supply, and GVC736BE101 gate driver, forms a high-performance industrial drive system. This solution is engineered for demanding applications requiring precision, reliability, and scalability. Each component plays a critical role in ensuring efficient power conversion, seamless control, and robust operation in extreme industrial environments.
