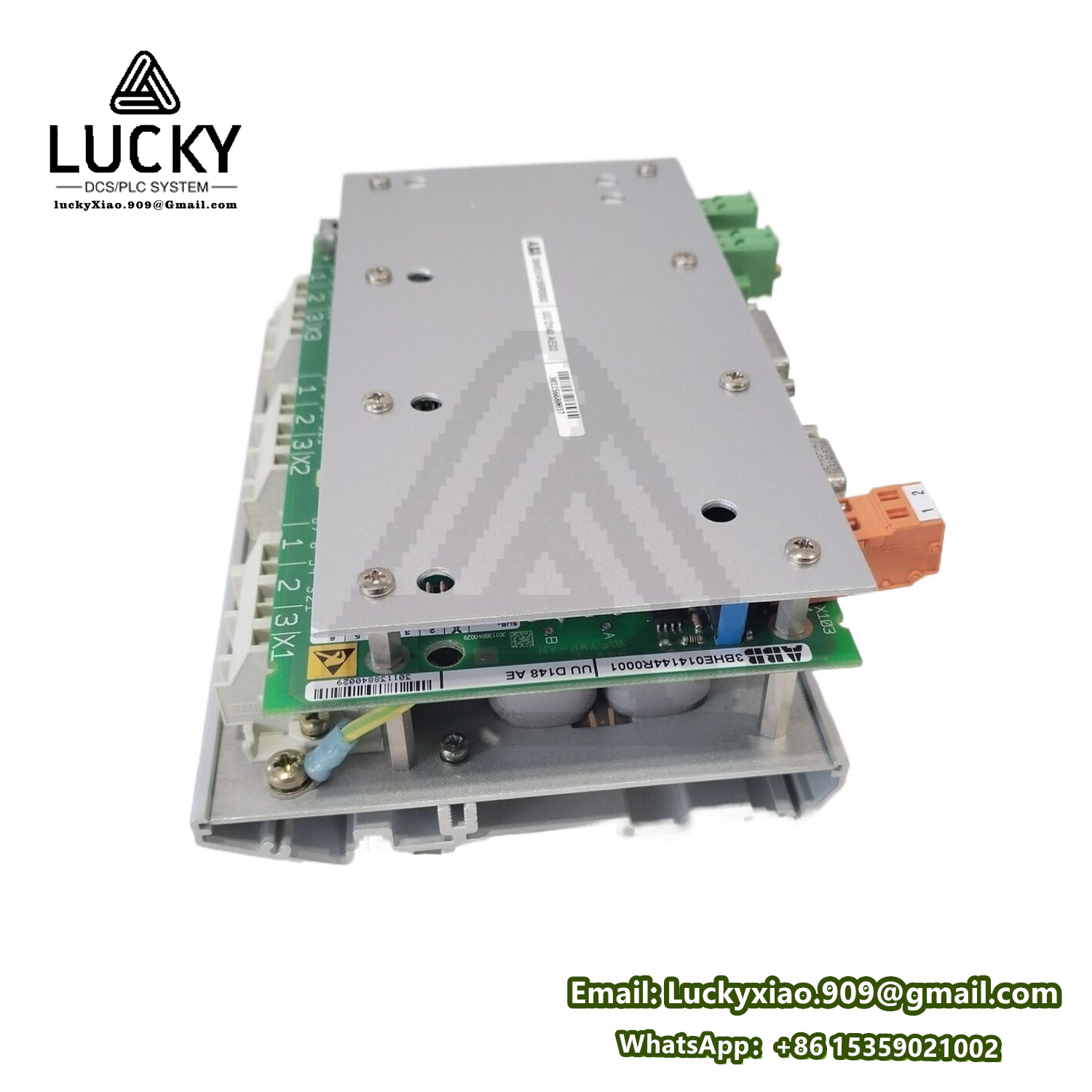

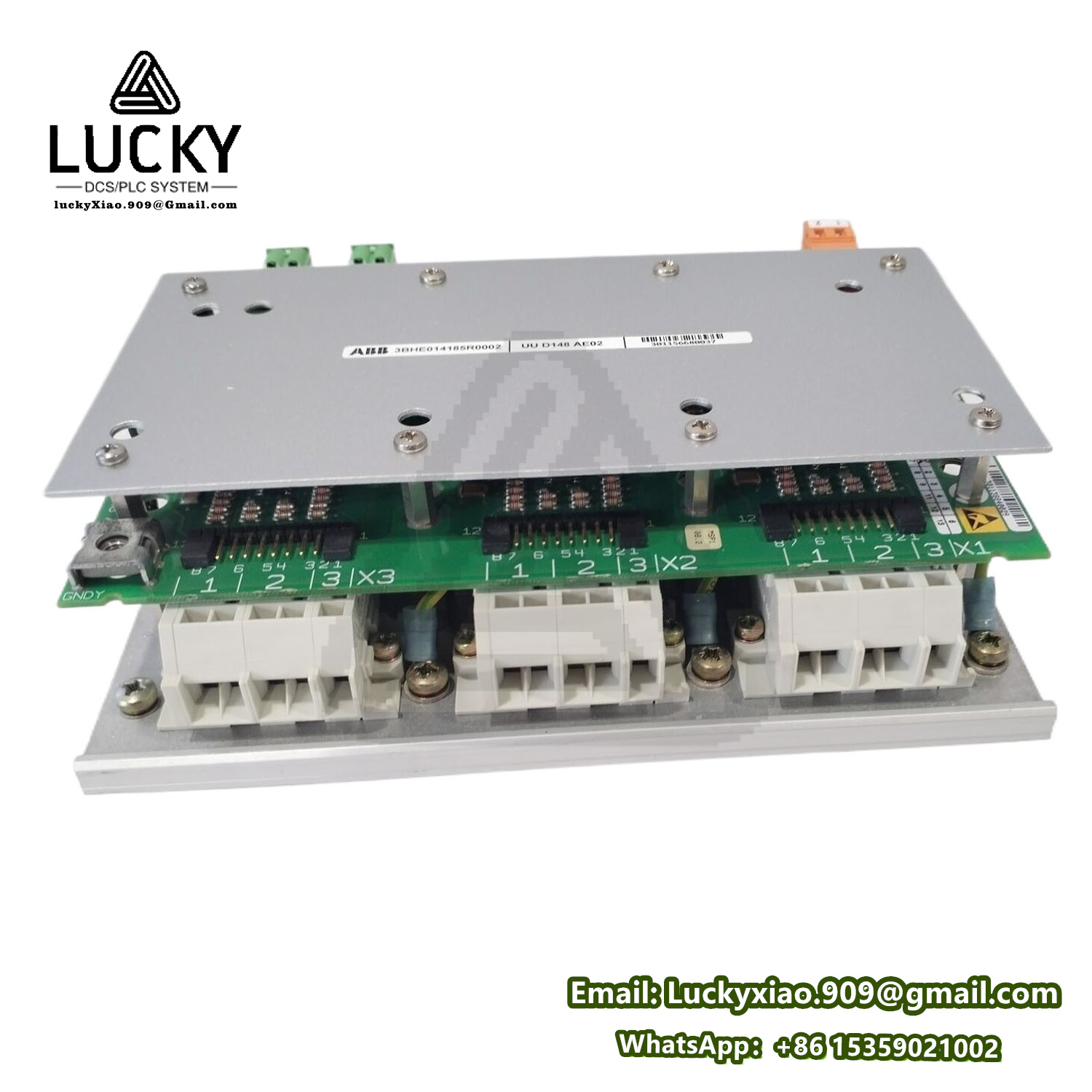

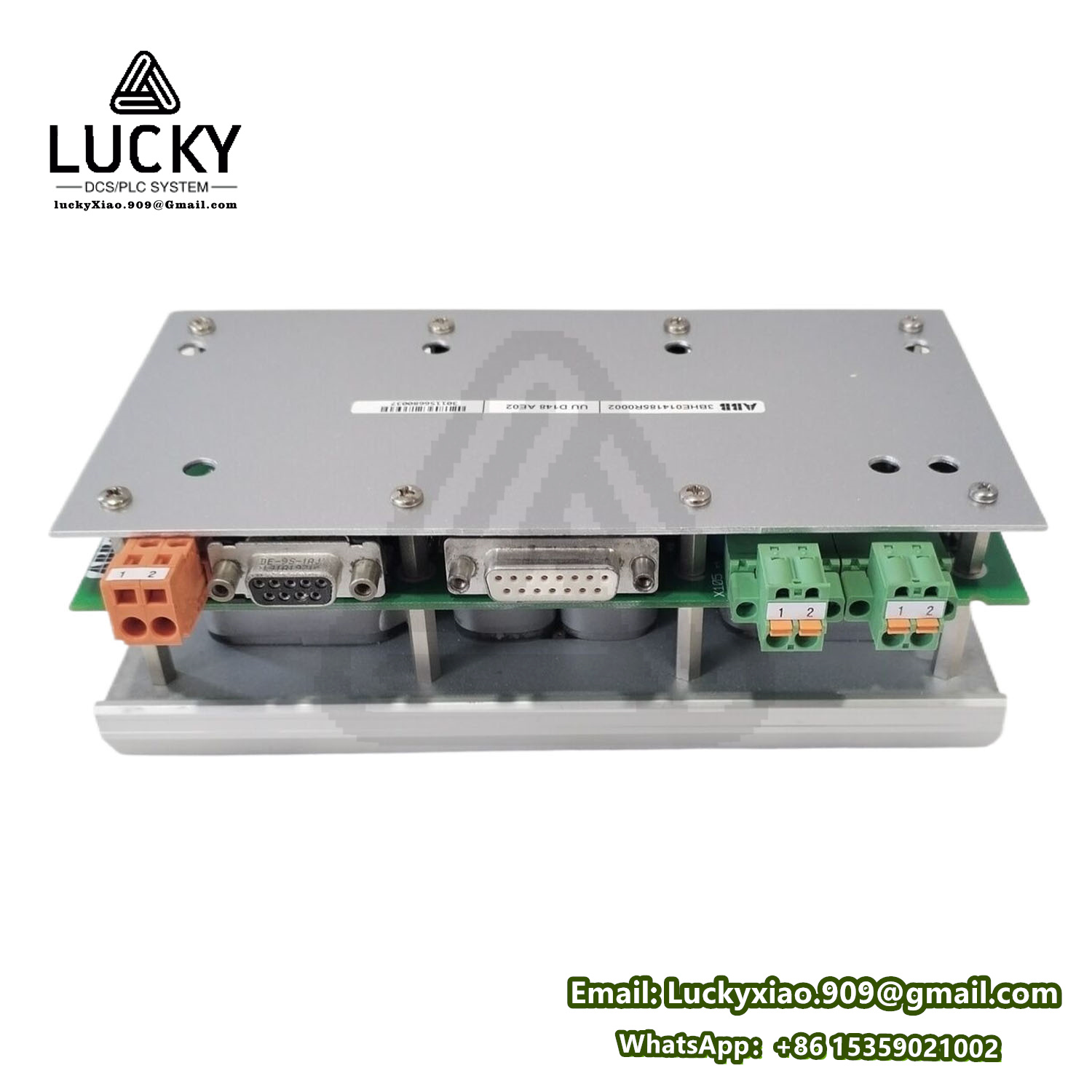

ABB 3BHE014185R0002 UUD148AE02 – Control Module
The ABB 3BHE014185R0002 UUD148AE02 is a control and communication module designed for integration with ABB’s AC 800M and Advant OCS automation systems. It provides advanced process control, data acquisition, and communication capabilities for industrial applications such as power plants, oil refineries, and chemical processing facilities.
Technical Parameters
|
Category
|
Specification
|
|---|---|
|
Power Supply
|
24 V DC (±20%), redundant power inputs supported
|
|
Communication Protocols
|
– PROFIBUS DP/PA
– Modbus RTU/TCP – IEC 61850 (optional) |
|
Processing Speed
|
32-bit RISC processor with real-time OS (cycle times down to 10 ms)
|
|
Memory
|
8 MB RAM (expandable via external storage)
|
|
I/O Compatibility
|
ABB S800 I/O modules (analog, digital, HART)
|
|
Operating Temperature
|
-25°C to +70°C
|
|
Humidity
|
5–95% (non-condensing)
|
|
Certifications
|
CE, UL, RoHS, IEC 61131-2, IEC 61508 (SIL 2/3)
|
|
Redundancy
|
Supports redundant CPU and communication configurations
|
|
Protection Class
|
IP20 (standard enclosure)
|
Functional Features
- Real-Time Process Control
- Executes complex control algorithms (PID, logic, sequencing) for industrial automation.
- Supports IEC 61131-3 programming languages (ST, FBD, LD, SFC).
- Multi-Protocol Communication
- Seamless integration with SCADA, DCS, and third-party systems via PROFIBUS, Modbus, or IEC 61850.
- Redundant Ethernet ports for high-availability networks.
- Advanced Diagnostics
- Built-in self-diagnostics for hardware, software, and network health monitoring.
- Event logging and sequence-of-events (SOE) recording for fault analysis.
- Redundancy & Reliability
- Hot-swappable design for maintenance without system downtime.
- Dual-CPU redundancy for mission-critical applications.
- Cybersecurity
- Role-based access control, encrypted communication (TLS/SSL), and compliance with IEC 62443.
- Scalability
- Modular architecture supports expansion with additional I/O modules (e.g., S800 series).
- Compatible with ABB’s 800xA system for enterprise-wide automation.
- Harsh Environment Resilience
- Operates reliably in extreme temperatures, high vibration, and EMI conditions.
- Optional conformal coating for corrosive or dusty environments.
Typical Applications
- Power Generation: Turbine control, grid synchronization, and substation automation.
- Oil & Gas: Pipeline monitoring, safety shutdown systems (ESD), and compressor control.
- Chemical Plants: Batch processing, reactor control, and safety interlocks.
- Water Treatment: Pump control, valve automation, and SCADA integration.
Compliance & Standards
- Safety: SIL 2/3 (IEC 61508/61511), ATEX/IECEx (optional).
- EMC: IEC 61000-6-2 (immunity), IEC 61000-6-4 (emissions).
- Environmental: RoHS, WEEE.
Conclusion
The ABB 3BHE014185R0002 UUD148AE02 is a versatile and robust control module engineered for demanding industrial automation. Its integration of real-time processing, multi-protocol communication, and redundancy ensures operational reliability in critical environments. Designed for seamless compatibility with ABB’s AC 800M ecosystem, it empowers industries to achieve precision, efficiency, and scalability in complex automation workflows.
