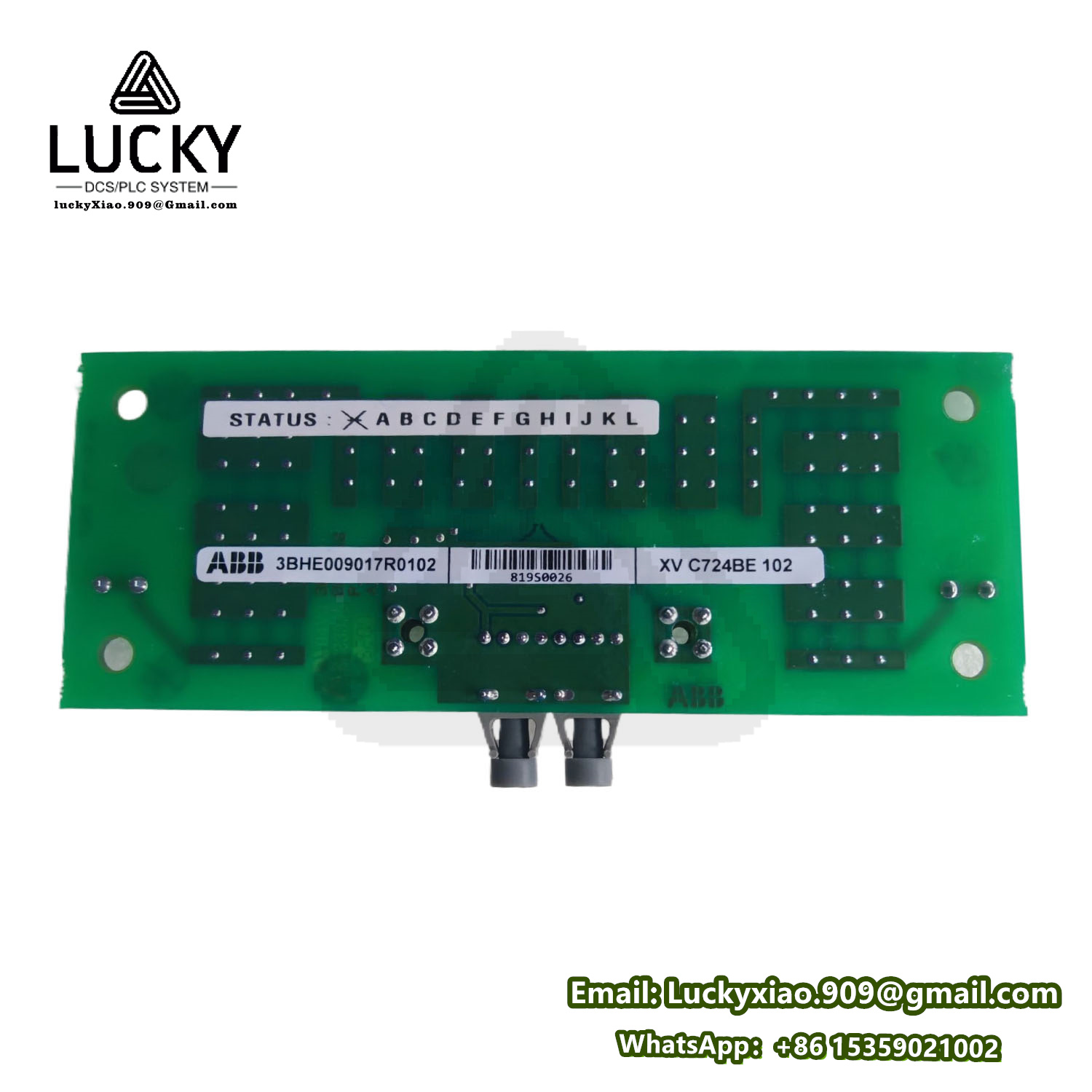

ABB 3BHE009017R0102 XVC724BE102 – Control Module
The ABB 3BHE009017R0102 XVC724BE102 is a control and communication module designed for integration with ABB’s AC 800M and S800 I/O systems. It facilitates real-time data exchange, process control, and industrial network connectivity in applications such as power generation, oil and gas, and manufacturing.
Technical Parameters
|
Category
|
Specification
|
|---|---|
|
Module Type
|
Control and communication interface
|
|
Power Supply
|
24 V DC (±20%), redundant power inputs supported
|
|
Communication Protocols
|
– PROFIBUS DP/PA
– Modbus RTU/TCP – OPC UA – IEC 61850 (optional) |
|
Processing Speed
|
32-bit RISC processor with real-time OS (cycle times down to 10 ms)
|
|
Memory
|
8–16 MB RAM (expandable via CompactFlash/SD card)
|
|
I/O Compatibility
|
ABB S800 I/O modules (analog, digital, HART, fieldbus)
|
|
Operating Temperature
|
-25°C to +70°C
|
|
Humidity
|
5–95% (non-condensing)
|
|
Certifications
|
CE, UL, RoHS, IEC 61131-2, IEC 61508 (SIL 2/3)
|
|
Redundancy
|
Supports redundant CPU and communication configurations
|
|
Protection Class
|
IP20 (standard enclosure)
|
Functional Features
- Real-Time Control
- Executes complex control algorithms (PID, logic, sequencing) for industrial processes.
- Compatible with IEC 61131-3 programming languages (ST, FBD, LD, SFC).
- Multi-Protocol Communication
- Seamless integration with SCADA, DCS, and enterprise systems via PROFIBUS, Modbus, or OPC UA.
- Optional IEC 61850 support for substation automation and smart grid applications.
- Diagnostics & Health Monitoring
- Built-in self-diagnostics for hardware, software, and network health.
- Event logging and sequence-of-events (SOE) recording for fault analysis.
- Redundancy & Reliability
- Hot-swappable design for maintenance without system downtime.
- Dual-CPU redundancy for mission-critical applications.
- Cybersecurity
- Role-based access control, encrypted communication (TLS/SSL), and compliance with IEC 62443.
- Scalability
- Modular architecture supports expansion with additional I/O modules (e.g., S800 series).
- Compatible with ABB’s 800xA system for enterprise-wide automation.
- Industrial Resilience
- Operates reliably in extreme temperatures, high vibration, and EMI conditions.
- Optional conformal coating for corrosive or dusty environments.
Typical Applications
- Power Generation: Turbine control, grid synchronization, and substation automation.
- Oil & Gas: Pipeline monitoring, safety shutdown systems (ESD), and compressor control.
- Chemical Plants: Batch processing, reactor control, and safety interlocks.
- Water Treatment: Pump control, valve automation, and SCADA integration.
Compliance & Standards
- Safety: SIL 2/3 (IEC 61508/61511), ATEX/IECEx (optional).
- EMC: IEC 61000-6-2 (immunity), IEC 61000-6-4 (emissions).
- Environmental: RoHS, WEEE.
Conclusion
The ABB 3BHE009017R0102 XVC724BE102 is a versatile and robust control module engineered for demanding industrial automation. Its integration of real-time processing, multi-protocol communication, and redundancy ensures operational reliability in critical environments. Designed for seamless compatibility with ABB’s AC 800M ecosystem, it empowers industries to achieve precision, efficiency, and scalability in complex automation workflows.
